LED DisplayAll-in-one LED Display
AD SeriesTL-165AD19ANEW / TL-137AD15ANEW / TL-110AD12A*
*Availability: Europe, Japan only.NEW
Offering flexible installation and expandability with high operability and long-term stable operation
(165AD19A)
(137AD15A)
(110AD12A)
| TL-165AD19A | TL-137AD15A | TL-110AD12A | |
|---|---|---|---|
| Screen size (Diagonal) | 164.78-inch / 4185.5 mm | 137.32-inch / 3487.9 mm | 109.86-inch / 2790.3 mm |
| LED type/Pixel pitch | SMD / 1.90 mm | SMD / 1.58 mm | SMD / 1.27 mm |
| Brightness | 700 cd/m² | ||
| Resolution (H x V) | 1920 x 1080 | ||
Related video
Features
- User-friendly all-in-one model designed for convenience
- These all-in-one model comes with a set of necessary equipment, including a display, controller, power supply, and mounting hardware. It uses an LED module with a luminance of 700 cd/m² and a pitch of 1.58 mm (137″) / 1.90 mm (165″) to display highly visible images. Much like a commercial display, it can be easily set up and operated using a remote controller. In addition to the wide color gamut that is unique to LEDs, it also has a color gamut conversion function, so it can deliver images that express the appeal of the content to the effective extent, depending on the intended use.
- Long-term operation with stability
- The brightness and power are controlled to suit the installation environment and the images being displayed, ensuring visibility while reducing power consumption. Because it uses highly reliable parts, it can be operated continuously for 24 hours a day. Thanks to the front access design, parts can be replaced and repaired from the front of the display in the event of a problem. It is equipped with a burn-in prevention and correction function, so it can stably display images even in environments where specific images are displayed for long periods of time.
- Efferently installation and expandability
- The thin, lightweight design reduces the weight load on the wall and the work load during installation. By assembling and adjusting the modules at the factory in advance and shipping them as semi-assembled products, high-quality images with minimal color deviations between modules are ensured. It is also equipped with two slots for Intel® SDM specifications, and by mounting a function board, the system can be expanded.
All-in-one convenience
The AD Series is an all-in-one type that comes with all necessary equipment, including a display panel, power box, control box, and mounting brackets. Since multiple displays can be seamlessly combined without visible joints, text and images are displayed clearly without any obstruction at the seams.
Kit components
- Cabinet module
- Wall mount
- Power box
- Control box
- Complete set of cables
- Remote controller
- Spare module and accessories
* Ex 110-inch model
High Visibility
The high brightness level of 700 cd/m² ensures excellent visibility even in brightly lit rooms.
There’s no need to dim the lights during meetings, so documents and visuals remain crisp and easy to read, enabling smooth and comfortable meetings and presentations.
Easy to operate using a remote controller
Just like professional-use displays, the included remote controller allows for easy setup and operation. This allows you to perform operations such as turning the power on/off and input switching from a remote location, enabling intuitive operation.
Faithfully reproduces the appeal of content with a wide color gamut
LED displays are composed of RGB three-primary-color LED elements and are characterized by a wide color gamut. They realistically reproduce the texture and depth of subjects, making them ideal for use across a variety of industries.
Furthermore, they are equipped with color management settings that allow color gamut conversion, ensuring faithful reproduction of content created for the color gamuts of LCD displays or smartphones. This enables video output that maximizes the appeal of content according to its intended use.
*Image comparing typical LED and LCD displays.
Energy-saving operation optimized for installation environment
Panasonic's proprietary APL (Average Picture Level) power control is adopted. This feature adjusts brightness according to the displayed content, achieving both clear visibility and energy-efficient operation.
In addition, the built-in illumination sensor automatically adjusts the brightness of the LED display to match the brightness of the room, thereby reducing power consumption.
Power Control by Illumination Sensor
* Image for illustrative purposes only.
Reliable 24-hour continuous operation
The AD Series supports 24-hour continuous operation, making it ideal for environments that require extended usage such as information boards and monitoring rooms.

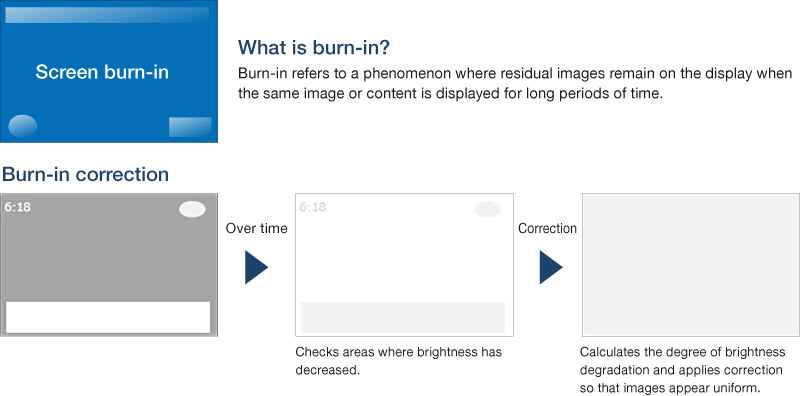

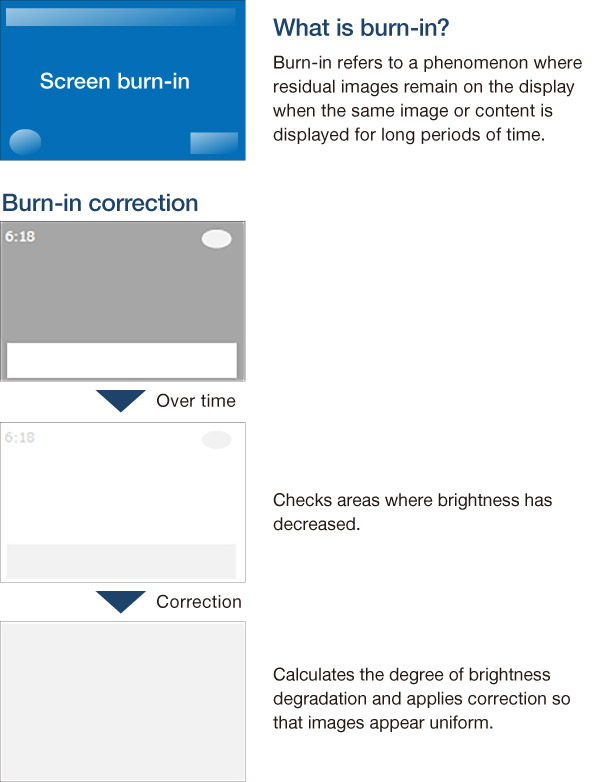

Burn-in prevention and brightness correction functions
In addition to a burn-in prevention function that shifts screen pixels at fixed intervals, the system also calculates and corrects the degree of brightness degradation in affected areas, ensuring uniform and easy-to-view image display.
Humidity sensor function (warm-up operation)
When the LED display is started at 100% brightness in an environment with high humidity, malfunctions such as lighting failure are more likely to occur.
The AD Series gradually increases brightness upon startup, using self-heating to reduce humidity inside the LED panel, and this control mechanism helps minimize stress on the LED elements.

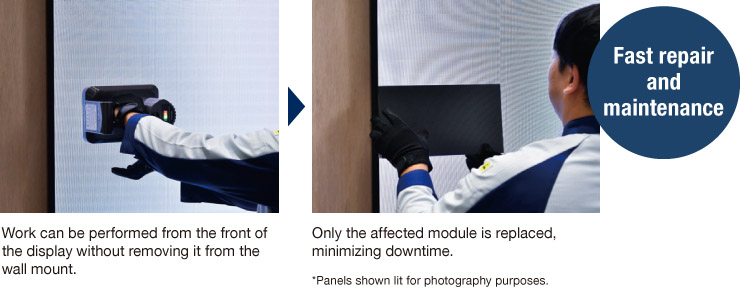

Quick response in case of panel trouble
LED modules can be removed from the front of the display.
In the event of panel trouble, modules can be replaced or repaired via front access, minimizing downtime.
Since repairs and maintenance can be performed from the front, installation is possible even in locations without sufficient rear space.
Lightweight, slim design for easier installation
A thinner and lighter design has been achieved while maintaining cabinet strength.
The AD Series is shipped as a semi-assembled product that has already been pre-assembled and adjusted at the factory. This reduces gaps and color misalignment between modules and shortens installation time.

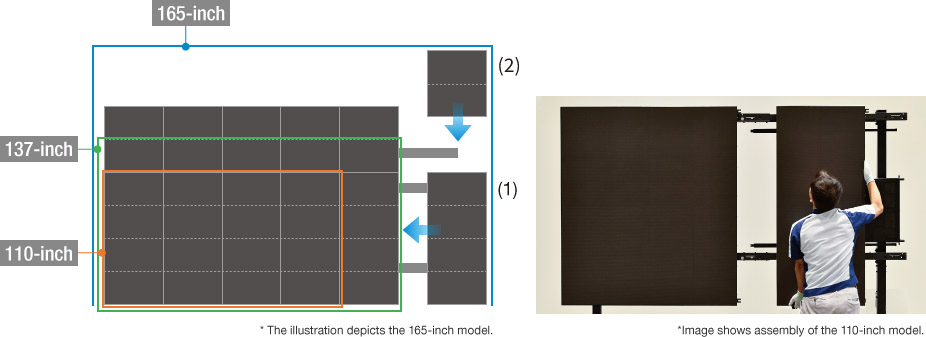

A. (1) Hang the cabinet module (1x4) onto the wall mount.
B. Connect (2) to (1), then connect the left and right cabinet modules.
Expanding horizons with large screens
The all-in-one LED display can also be used in combination with multiple units (NxN).
For use in multi-display configurations, please contact each region's sales company.
Easy function expansion to suit your needs
The system can be expanded by installing function boards to add interfaces or other features as required.
