Preliminary Product4K UHD Displays
EQ3 SeriesTH-86EQ3 / TH-75EQ3 / TH-65EQ3 / TH-55EQ3 / TH-50EQ3 / TH-43EQ3
Available from CY2025 Q4
*Availability varies depending on model
1
1: Actual resolution: 3840 x 2160p
| TH-86EQ3 | TH-75EQ3 | TH-65EQ3 | TH-55EQ3 | TH-50EQ3 | TH-43EQ3 | |
|---|---|---|---|---|---|---|
| Screen size | 86-inch class | 75-inch class | 65-inch class | 55-inch class | 50-inch class | 43-inch class |
| Brightness | 500 cd/m² | |||||
| Contrast | 1200:1 | 5000:1 | 1200:1 | |||
| Resolution (H x V) | 4K (3840 x 2160) | |||||
| Release date | Available from CY2025 Q4 | |||||
Features

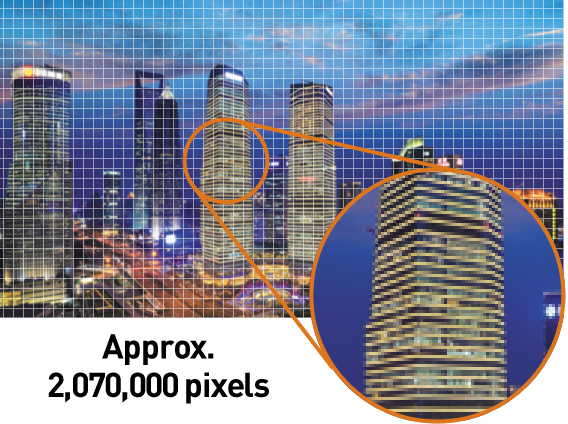

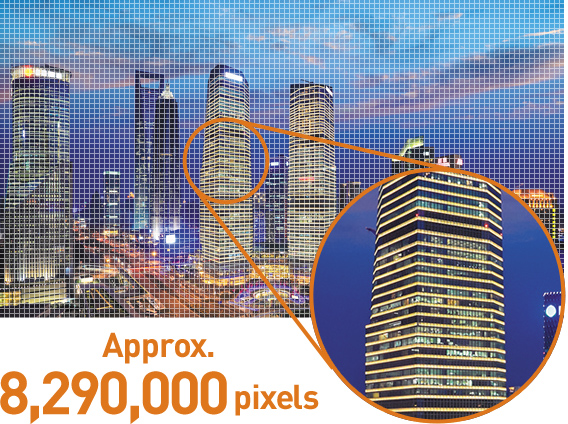

- High 4K Image Quality for Clear and Detailed Visuals

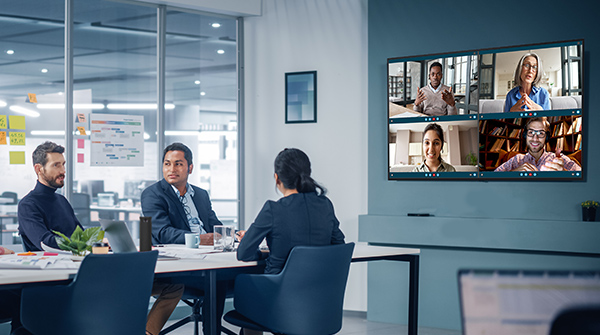

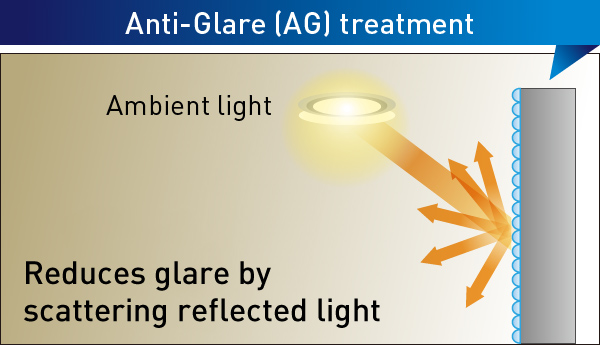

- With 500 cd/m² brightness and high haze value panels to suppress the reflected glare of bright light, it is ideal for conference rooms and classrooms. The use of wide-viewing angle panels ensures high-quality images regardless of seating position during meetings or classes.

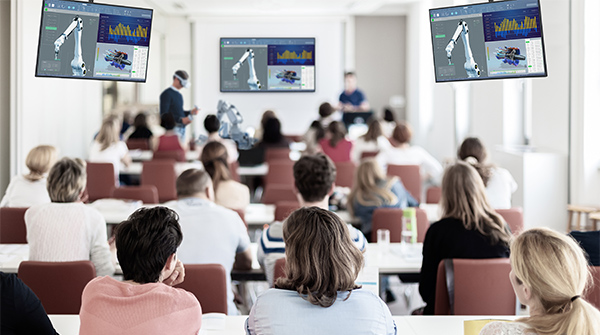

- Flexible Installation to Suit a Variety of Use Cases
- Choose a screen size based on your space, from small corners like huddle rooms to main displays in conference rooms and classrooms. With forward/backward tilt up to 20 degrees, it ensures clear visibility in any setup.
- Scalability that enables cooperation with various systems

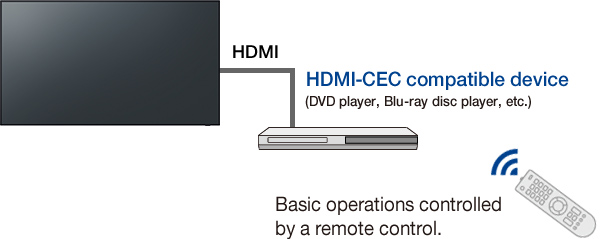

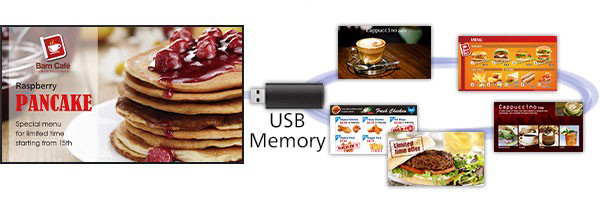

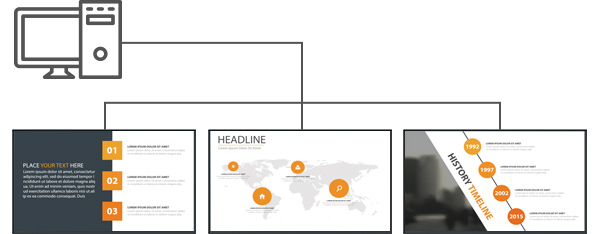

- Equipped with three HDMI™ inputs, PC input, and USB Type-A ports, this device connects various external devices based on the usage environment. HDMI™ CEC allows control of connected devices with a single remote. It also supports external control via RS-232C, LAN (PJLink™), Crestron Connected™*1, and Crestron XiO Cloud™*1, enabling efficient operation.
*1: Support for Crestron Connected™ and Crestron XiO Cloud™ will be added sequentially through software updates.
as of June 2025
Specifications (Tentative)
| TH-86EQ3 | TH-75EQ3 | TH-65EQ3 | |
| Display Panel | |||
| Panel size | 85.6-inch (2174.2 mm) | 74.5-inch (1892.7 mm) | 64.5-inch (1638.9 mm) |
| Aspect ratio | 16:9 | ||
| Effective display area (W x H) | 74.60" x 41.96" (1895.0 x 1065.9 mm) | 64.94" x 36.53" (1649.6 x 927.9 mm) | 56.23" x 31.63" (1428.4 x 803.5 mm) |
| Resolution | 3840 x 2160 | ||
| Brightness (typ.) | 500 cd/m² | ||
| Contrast ratio (typ.) | 1200:1 | ||
| Response time (typ.) | 8.0 ms | ||
| Viewing angle [(T/B)/(L/R)] | 178° / 178° | ||
| Panel Surface Treatment | Anti-glare treatment (Haze 25 %) | ||
| Terminals | |||
| HDMI™ In | TYPE A Connector x 3 (HDCP2.2 supported) | ||
| PC In | Mini D-sub 15-pin x 1 (Female) | ||
| Serial | D-sub 9-pin x 1, RS232C Compatible | ||
| Audio In (L/R)/ Audio Out | Stereo Mini Jack (M3) x 1 / Pin Jack x 1 | ||
| LAN | RJ45 x 1, 10BASE-T/100BASE-TX | ||
| USB | USB Connector (TYPE-A) x 1, DC 5 V/2 A (USB2.0 supported) | ||
| Audio | |||

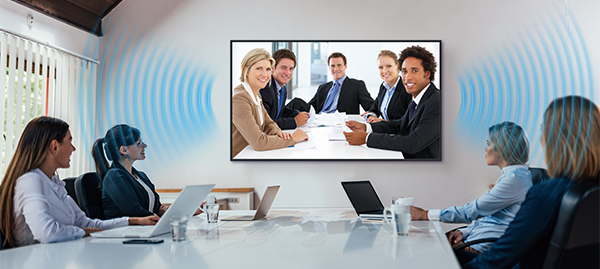

| Built-in speaker | 20W [10 W + 10 W] | ||
| Electrical | |||
| Power requirements | 110-240 V AC, 50 Hz/60 Hz | ||
| Power consumption | TBD | TBD | TBD |
| Power off condition | Approx. 0.3 W | ||
| Standby condition | Approx. 0.5 W | ||
| Mechanical | |||
| Dimensions (W × H × D*) * Not including handles. |
75.95" x 43.31" x 2.74" (1929 x 1100 x 70 mm) | 66.28" x 37.87" x 2.74" (1684 x 962 x 70 mm) | 57.58" x 32.97" x 2.72" (1463 x 838 x 69 mm) |
| Weight | TBD | TBD | TBD |
| Bezel width | 0.61" (15.5 mm) (T/R/L/B) | 0.59" (14.9 mm) (T/R/L/B) | |
| Wall-hanging pitch | 23.6" x 15.8" (600 x 400 mm), M8 | 15.8" x 15.8" (400 x 400 mm), M8 | |
| Installation Requirement1 | |||
| Orientation | Landscape/Portrait | ||
| Tilting Angle | 0 - 20 degrees forward / backward with landscape / portrait setting | ||
| Environment | |||
| Operating time2 | 18 h/day | ||
| Operating environment | Temperature: 32 °F to 104 °F (0 °C to 40 °C)/Humidity: 20-80 % (Non condensation)/for up to 4593 ft (0-1400 m) attitude. Temperature: 32 °F to 95 °F (0 °C to 35 °C)/Altitude 4593 ft to 9186 ft (1400-2800 m) | ||
1: When installing the display vertically, be sure that the power indicator comes to the right side.
2: In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.
| TH-55EQ3 | TH-50EQ3 | TH-43EQ3 | |
| Display Panel | |||
| Panel size | 54.6-inch (1387.8 mm) | 49.5-inch (1257.3 mm) | 42.5-inch (1079.8 mm) |
| Aspect ratio | 16:9 | ||
| Effective display area (W x H) | 47.62" x 26.78" (1209.6 x 680.4 mm) | 43.14" x 24.26" (1095.8 x 616.4 mm) | 37.05" x 20.84" (941.1 x 529.4 mm) |
| Resolution | 3840 x 2160 | ||
| Brightness (typ.) | 500 cd/m² | ||
| Contrast ratio (typ.) | 1200:1 | 5000:1 | 1200:1 |
| Response time (typ.) | 8.0 ms | 9.5 ms | 8.0 ms |
| Viewing angle [(T/B)/(L/R)] | 178° / 178° | ||
| Panel Surface Treatment | Anti-glare treatment (Haze 25 %) | ||
| Terminals | |||
| HDMI™ In | TYPE A Connector x 3 (HDCP2.2 supported) | ||
| PC In | Mini D-sub 15-pin x 1 (Female) | ||
| Serial | D-sub 9-pin x 1, RS232C Compatible | ||
| Audio In (L/R)/ Audio Out | Stereo Mini Jack (M3) x 1 / Pin Jack x 1 | ||
| LAN | RJ45 x 1, 10BASE-T/100BASE-TX | ||
| USB | USB Connector (TYPE-A) x 1, DC 5 V/2 A (USB2.0 supported) | ||
| Audio | |||
| Built-in speaker | 20W [10 W + 10 W] | ||
| Electrical | |||
| Power requirements | 110-240 V AC, 50 Hz/60 Hz | ||
| Power consumption | TBD | TBD | TBD |
| Power off condition | Approx. 0.3 W | ||
| Standby condition | Approx. 0.5 W | ||
| Mechanical | |||
| Dimensions (W × H × D) | 48.89" x 28.06" x 2.60" (1242 x 713 x 66 mm) | 44.43" x 25.56" x 2.60" (1129 x 649 x 66 mm) | 38.31" x 22.10" x 2.56" (973 x 562 x 65 mm) |
| Weight | TBD | TBD | TBD |
| Bezel width | 0.55" (13.9 mm) (T/R/L/B) | 0.59" (14.9 mm) (T/R/L/B) | 0.55" (13.9 mm) (T/R/L/B) |
| Wall-hanging pitch | 15.8" x 15.8" (400 x 400 mm), M6 | 7.9" x 7.9" (200 x 200 mm), M6 | |
| Installation Requirement1 | |||
| Orientation | Landscape/Portrait | ||
| Tilting Angle | 0 - 20 degrees forward / backward with landscape / portrait setting | ||
| Environment | |||
| Operating time2 | 18 h/day | ||
| Operating environment | Temperature: 32 °F to 104 °F (0 °C to 40 °C)/Humidity: 20-80 % (Non condensation)/for up to 4593 ft (0-1400 m) attitude. Temperature: 32 °F to 95 °F (0 °C to 35 °C)/Altitude 4593 ft to 9186 ft (1400-2800 m) | ||
1: When installing the display vertically, be sure that the power indicator comes to the right side.
2: In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.
Optional Accessories
- Wall Hanging Bracket
- TY-WK98PV1 (for 86/75/65-inch)
* Availability varies depending on the country.
- Pedestal
- TY-ST75PE9 (for 75/65-inch)
TY-ST55PE9 (for 55-inch)
TY-ST43PE9 (for 50/43-inch)
Peripheral
- Wireless Presentation System
- Basic set TY-WPS2
Basic set TY-WPSC2
- *Availability varies depending on the country.
