Versatile Lineup of Highly Reliable Displays in 4K Resolution Ideal for Corporate Meeting Rooms/Educational and Signage Use

Standard4K UHD LCD Displays

SQE2 SeriesTH-98SQE2NEW / TH-86SQE2NEW / TH-75SQE2NEW / TH-65SQE2NEW /
TH-55SQE2NEW / TH-50SQE2NEW / TH-43SQE2NEW

* Availability varies depending on model

4K standard model that combines high reliability with 24-hour continuous operation and expandability to meet diverse needs.

* Actual resolution: 3840 x 2160p

TH-98SQE2: 98-inch class; 500 cd/m²; Anti-glare
(Haze 25 %); 4K (3840 x 2160); 24 h/day

TH-86SQE2: 86-inch class; 500 cd/m²; Anti-glare
(Haze 28 %); 4K (3840 x 2160); 24 h/day

TH-75SQE2: 75-inch class; 500 cd/m²; Anti-glare
(Haze 25 %); 4K (3840 x 2160); 24 h/day

TH-65SQE2: 65-inch class; 500 cd/m²; Anti-glare
(Haze 25 %); 4K (3840 x 2160); 24 h/day

TH-55SQE2: 55-inch class; 500 cd/m²; Anti-glare
(Haze 25 %); 4K (3840 x 2160); 24 h/day

TH-50SQE2: 50-inch class; 500 cd/m²; Anti-glare
(Haze 25 %); 4K (3840 x 2160); 24 h/day

TH-43SQE2: 43-inch class; 500 cd/m²; Anti-glare
(Haze 25 %); 4K (3840 x 2160); 24 h/day

Features

High image quality and high legibility suitable for various scenes: Available in 7 sizes from the 43-inch model to the 98-inch model. The 500 cd/m² brightness allows for clear video viewing in brightly lit conference rooms, classrooms and retail spaces. The SQE2 series has a high haze anti-glare surface treatment panel, which reduces reflection of ambient light and improves visibility.
Superb Reliability & Easy Installation: A highly reliable display that supports vertical and tilting installation and 24 h/day continuous operation. Equipped with 4 HDMI™ IN, HDMI™ OUT, USB-C (15 W), 3 USB-A, DisplayPort, and Intel^® SDM specification slot standard. Furthermore, the SQE2 series is equipped with a built-in speaker.
Various external linkage suitable for conference room and signage applications: The SQE2 series is equipped with Android™ OS and is compatible with HTML 5 Browser for ease of use with digital signage. This series is also equipped with a Wi-Fi function so that images can be wirelessly displayed from a PC or Android™ device¹. Simultaneous control and batch management over a network are also possible via LAN.

1: Windows^® 10 PC or Android™ device with wireless functionality. Operation is not guaranteed on all devices.

Flexible installation to suit your space

Choose from a wide lineup of displays ranging from the 43-inch model to the 98-inch model to suit your space, including for small corners of a huddle room or as a main display in a conference room. The display can be installed horizontally or vertically, allowing you to choose the installation orientation according to the content.

500 cd/m2

The SQE2 series displays 4K resolution images at a brightness of 500 cd/m². It can be installed horizontally or vertically, allowing you to choose the installation orientation according to the content. It also ensures high visibility even in bright environments.

Flexible installation to suit your space

Stunning Panasonic 4K Quality Right Down to the Details

With approximately 8,290,000 pixels, or about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life, finely nuanced images. The 4K display is an excellent choice for meeting rooms where images are often viewed up close, and creates impressive ambience in signage applications for commercial facilities. It can be expected to attract considerable attention.

Please visit "Why 4K" site.

Highly Legible Panel Surface Processing

The SQE2 series has a high haze anti-glare surface treatment panel (haze 25%) , which reduces reflection of ambient light and improves visibility.
Because it suppresses external reflections to maintain higher legibility, it is ideal for use in bright conference room, educational facilities, retail and shopping mall.

* 86-inch model has a minimum haze treatment of 28%.

Images Optimized for the Display Content

The SQE2 series comes with an extensive display menu to let you select the most suitable mode for the content to be displayed and the viewing environment.
Select the best mode for the video source and the display area.

Signage
Natural
Text
Game
Sports

High Reliability Enables Continuous 24/7 Operation

The SQE2 series is capable of continuous 24/7 operation. It offers reliable use in public spaces where many people gather, such as train stations, airports, and shopping malls, as well as for installation in control rooms.

* Moving images are recommended when displaying for long periods of time. If you display still images for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying moving images.

Choose the Installation to Match Your Application

There are screen sizes to match everything, from small rooms, such as huddle rooms, to large rooms. Installation is also possible at a forward inclination of up to 45 degrees* to maintain legibility when mounted in high places.

* 98/86" models are 20 degrees.

USB Type-C Connectivity

The SQE2 series is equipped with a variety of input terminals. Among them is USB-C (15W) that allows connection from mobile devices. 4K display, data transfer and charging of connected devices can be simultaneously conducted over a single cable with the USB-C port.

Supports the Next-Generation Intel^® SDM Specification Slot Standard

Intel® Smart Display Module

The SQE2 series is equipped with the Intel^® SDM specification slot standard that supports 4K signals. Combined with the interface board*, you can easily use a built-in PC and add various interfaces.

* Third-party Intel® SDM-specified function boards sold separately. Panasonic cannot guarantee operation of third-party devices. The transmission method to the slot must be by HDMI™ signal.

Interface Expandability with SLOT

* Image is simulated.

Wireless Display Function

The SQE2 series is equipped* with a Wi-Fi function, which enables wireless display of Full HD images on a display from a Windows^® 11 or Windows^® 10 PC with wireless functionality, or an Android device. This is also useful when changing presenters during a meeting.

* This does not guarantee operation on all devices.

PC Software Enables Even Easier and More Convenient Content Playback and Management

The SQE2 Series features a USB Media Player function that allows easy signage playback. Content Management Software is an application software for scheduling digital signage playback on a computer. It also allows power ON/OFF to be set.

* For more information about Content Management Software, please visit download software.

Play Content Automatically with Scheduling Function

Content Management Software for PC (free) enables easy playlist creation with media support including combinations of still and video images. You can set up schedules for playing and ending your media playlist at predetermined dates and times.

Convenient Playlist and Schedule Syncing

Playlists and schedules created with Content Management Software can be transferred to displays with USB memory or via LAN.

4K USB Media Player

Video and still images saved into USB media in advance can simply be inserted into the SQE2 series for automatic playback.

* The playable application format, GUI and operation procedure for the SQE2 series' Media Player function are different from those of other models.

Multi Monitoring & Control Software

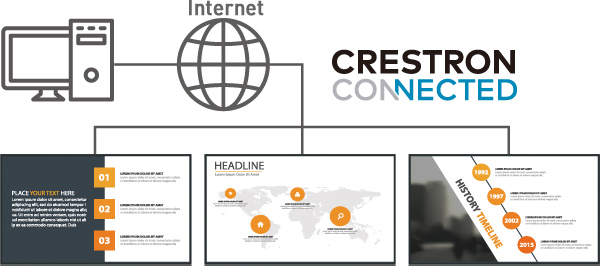

Compatible with Multi Monitoring & Control Software for addition of new functions, such as automatic searching for map displays and registered devices. Displays and peripheral equipment on the intranet can be controlled and their status can be monitored. Also error notification and error indication can be detected by an indication monitoring function (for a fee) for improved maintenance.
