Large-Venue3-Chip DLP™ Projectors
PT-RQ35K SeriesPT-RQ35K / PT-RZ34K
 PT-RQ35K |
 PT-RZ34K |
|
|---|---|---|
| Projector type | 3-Chip DLP™ projector | |
| DLP™ chip | ||
| Panel size | 24.4 mm (0.96 in) diagonal (16:10 aspect ratio) | |
| Display method | DLP™ chip x 3, DLP™ projection system | |
| Number of pixels | 2,304,000 (1920 x 1200 pixels) x 3 | |
| Light source | Laser diodes (Blue LD, Red LD) | |
| Light output*1
?
ISO/IEC 21118: Brightness measured complied with ISO/IEC 21118: 2020 international standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m2). Value is the average of all products when shipped. ANSI lm: Brightness measured complied with American National Standards Institute standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m2). Value is the average of all products when shipped. Result of Brightness measured complied with ISO/IEC 21118 and ANSI will be same. Center lm: Measured Illumination level at the center of screen (lux) multiplied by projected area (m2). Value is the average of all products when shipped. When comparing projectors, it's essential to ensure that the brightness ratings are measured using the same standard to get an accurate comparison. |
30,500 lm*2 / 30,500 lm (ANSI)*3 / 32,000 lm (Center)*4 | |
| Time until light output declines to 50 %*5 | 20,000 hours (Normal), 24,000 hours (Eco), 26,000 hours (Quiet) | |
| Resolution | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) | WUXGA (1920 x 1200 pixels) |
| Contrast ratio*2 | 20,000:1 (Full On/Full Off, Dynamic Contrast [3]) | |
| Screen size (diagonal) | 1.78–25.4 m (70–1,000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95, 5.08–15.24 m (200–600 in) with ET-D3LEU100/D3LEU101/ET-D3LEW200/D3LEW201 | |
| Center-to-corner zone ratio*2 |
90 % | |
| Lens | Optional (no lens included with this model) | |
| Lens shift*6 (From the origin point of the lens mounter) |
||
| Vertical | ±55 % (+78 %, +68 % with ET-D75LE95, ±48 % with ET-D3LEW200/D3LEW201, ±44 % with ET-D75LE6/ET-D3LEW60) (powered) |
|
| Horizontal | ±20 % (±15 % with ET-D75LE6/ET-D3LEW60/ET-D3LEW200/D3LEW201, ±12 % with ET-D75LE95, +25 %, 0 % with ET-D3LEU100/D3LEU101) (powered) |
|
| Keystone correction range | Vertical: ±45 ° (± 40 ° with ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20, ±28 ° with ET-D75LE6/ET-D3LEW60, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW200/D3LEW201, ±8 ° with ET-D3LEU100/D3LEU101, +5 ° with ET-D75LE95), Horizontal: ±40 ° (±15 ° with ET-D3LEW50/ET-D75LE6/ET-D3LEW60, ±5 ° with ET-D3LEU100/D3LEU101/ET-D3LEW200/D3LEW201, 0 ° with ET-D75LE95) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |
|
| Installation | Ceiling/floor, front/rear, free 360-degree installation | |
| Terminals | ||
| SDI IN | — | BNC x 1: 3G/HD-SDI input |
| HDMI IN | HDMI x 1 (Deep Color, compatible with HDCP 2.2, 4K/60p signal input*7) | |
| DVI-D IN | — | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP) (Single-link only) |
| MULTI PROJECTOR SYNC IN | BNC x 1 | — |
| MULTI PROJECTOR SYNC OUT | BNC x 1 | — |
| MULTI PROJECTOR SYNC
IN terminal/3D SYNC 1
IN/OUT terminal
(dual purpose) |
— | BNC x 1 |
| MULTI PROJECTOR SYNC OUT terminal/3D SYNC 2 OUT terminal (dual purpose) | — | BNC x 1 |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) | |
| REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control | |
| REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control | |
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) | |
| DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input*7 | |
| LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible | |
| USB | USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series)/USB Memory Stick | |
| DC OUT | USB Type A x 2 (for power supply, DC 5 V total of 2 A) | |
| Expansion slot | SLOT 1/SLOT 2 (total two terminals, vacant) for interface boards, SLOT NX compatible | SLOT (one terminal, vacant) for interface boards, SLOT NX compatible |
| Power supply | AC 200 V–240 V (Light output will decrease when using the projector with AC 100 V to AC 120 V) | |
| Maximum power consumption | 2,550 W (Standby: 14 W) | 2,450 W (Standby: 13 W) |
| On-mode power consumption (Operating mode) |
|
|
| Cabinet materials | Molded plastic | |
| Operation noise*2 | 49 dB (Normal), 46 dB (Quiet) | |
| Dimensions (W x H x D) | Approx. 598 x 353 x 780 mm (23 17/32˝ x 13 29/32˝ x 30 23/32˝) (not including protruding parts) | |
| Weight*8 | 69.8 kg (153.9 lbs) | 68.6 kg (151.2 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*9, operating humidity: 10–80 % (no condensation) | |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control for iOS/Android™ | |

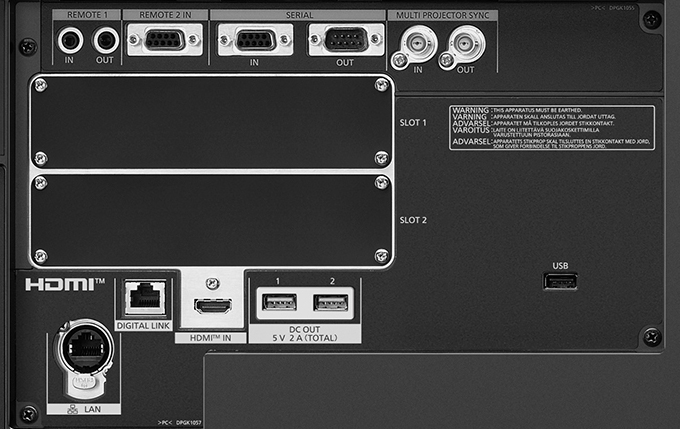

| Terminals PT-RQ35K |  |
|
| PT-RZ34K |  |
|
*1 When [OPERATING MODE] is set to [NORMAL].
*2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
*3 Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.
*4 Average light-output value of all shipped products measured at the center of the screen.
*5 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Normal Mode, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until light output declines to 50 % varies depending on environment.
*6 Lens shift is not supported on the ET-D3LEW50.
*7 4K signals are converted to WUXGA (1920 x 1200 pixels) only for the PT-RZ34K.
*8 Average value. May differ depending on the actual unit.
*9 When optional AJ-WM50 wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft).
