Preliminary Product3-Chip DLP™ Projectors
PT-RQ45K SeriesPT-RQ45K / PT-RZ44K
Note: Based on publicly available dimensions and weights of projectors with a brightness of 36,000 lm or higher, as of May 2025 (according to Panasonic Projector & Display Corporation research).
Optional lenses sold separately.
| PT-RQ45K | PT-RZ44K | |
|---|---|---|
| Light Output | 40,000 lm1 / 40,000 lm (ANSI)7 | |
| Resolution | 4K (3840 x 2400 pixels)2 | WUXGA (1920 x 1200 pixels) |
Note: The PT-RZ44K availability may vary by country or region. |
||
Features
Streamlined Logistics for an Efficient Workflow

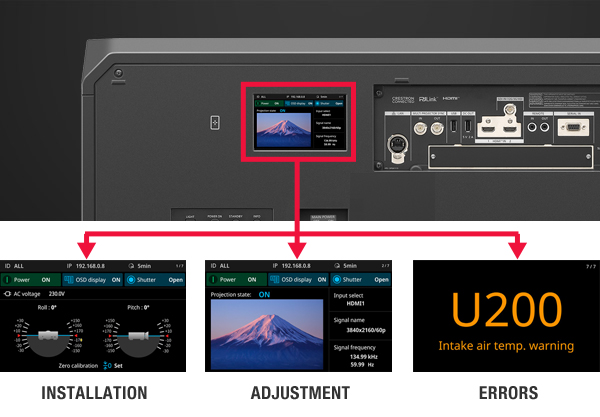

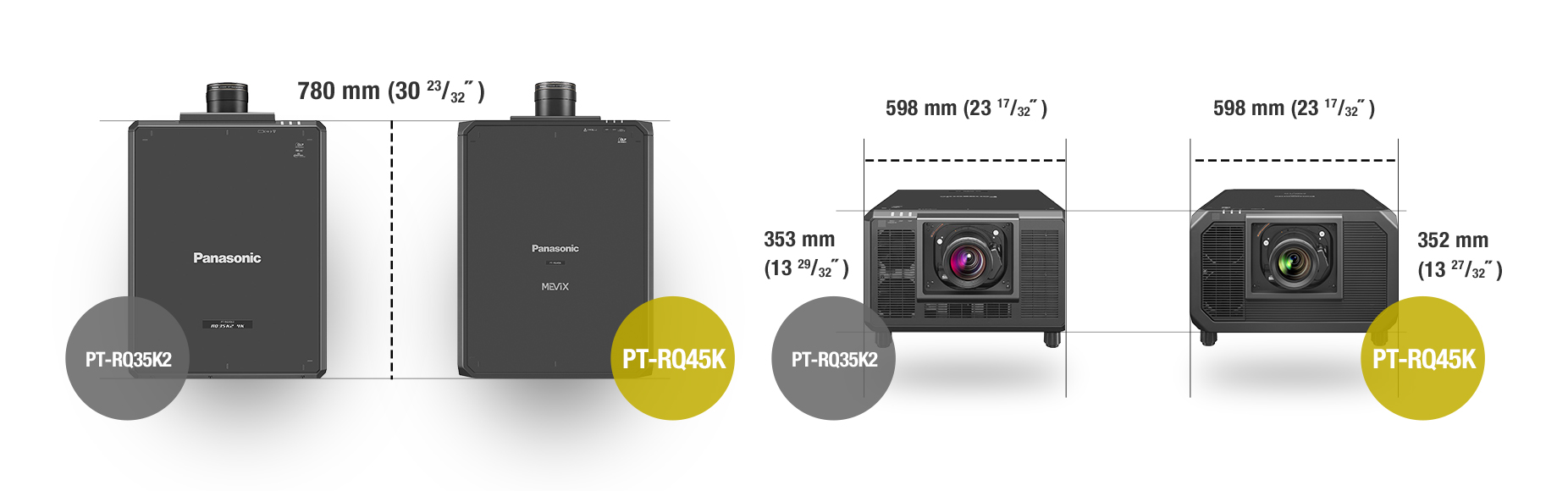

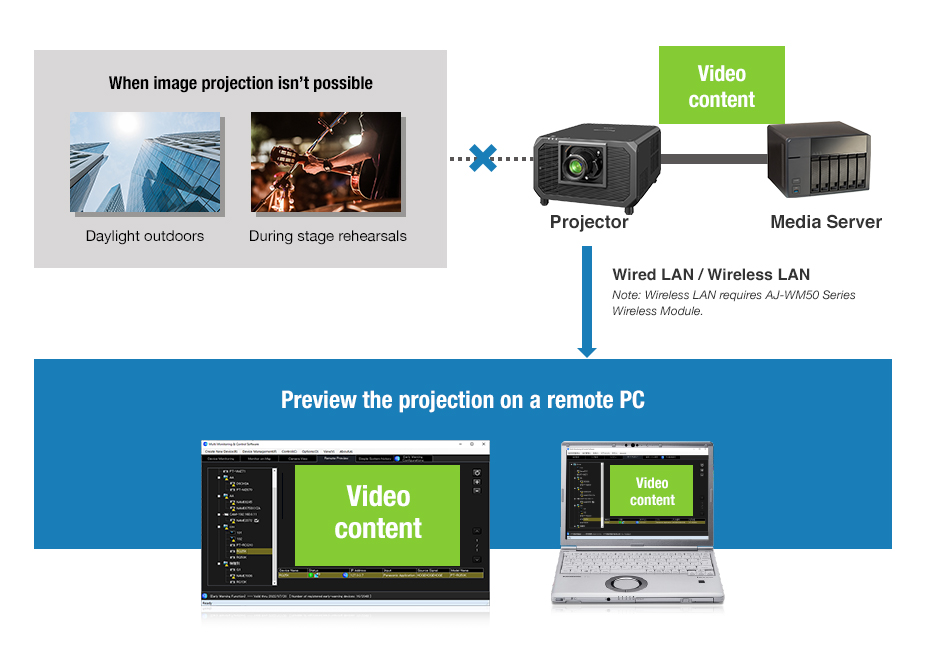

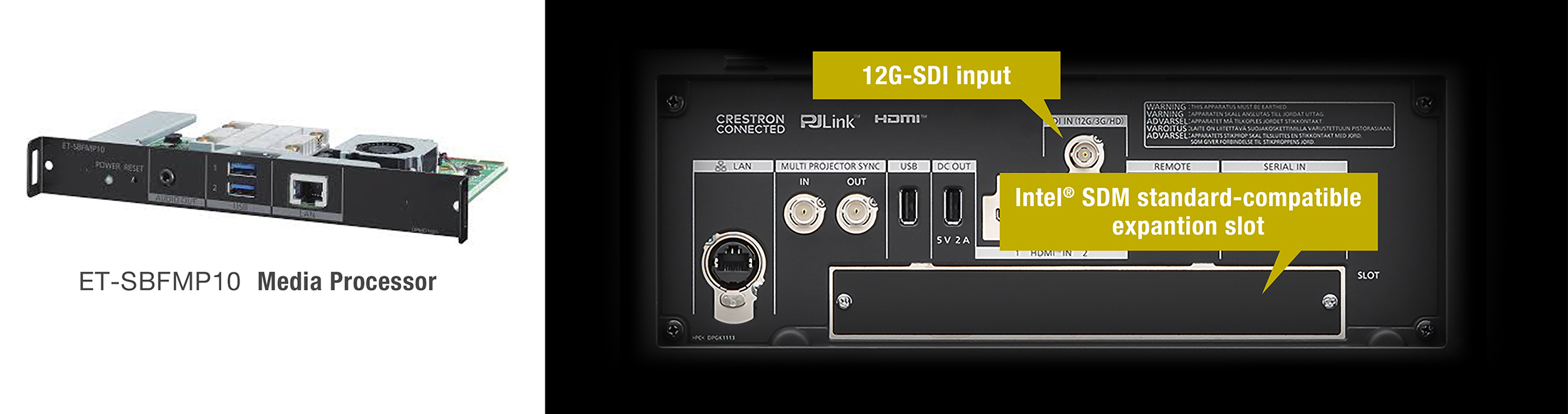

Delivering 40,000 lm1 from a body size equivalent to the RQ35K2/RQ35K Series, the RQ45K Series streamlines transport, installation, and setup logistics. Compatibility with existing frames, flight cases, and optional lenses makes upgrading economical. A new 5-inch color LCD monitor simplifies pre-show video checks and real-time status monitoring, while an Intel® SDM standard-compatible expansion slot8 and 12G-SDI input9 ensure seamless system integration.
Enhanced Reliability in Harsh Environments

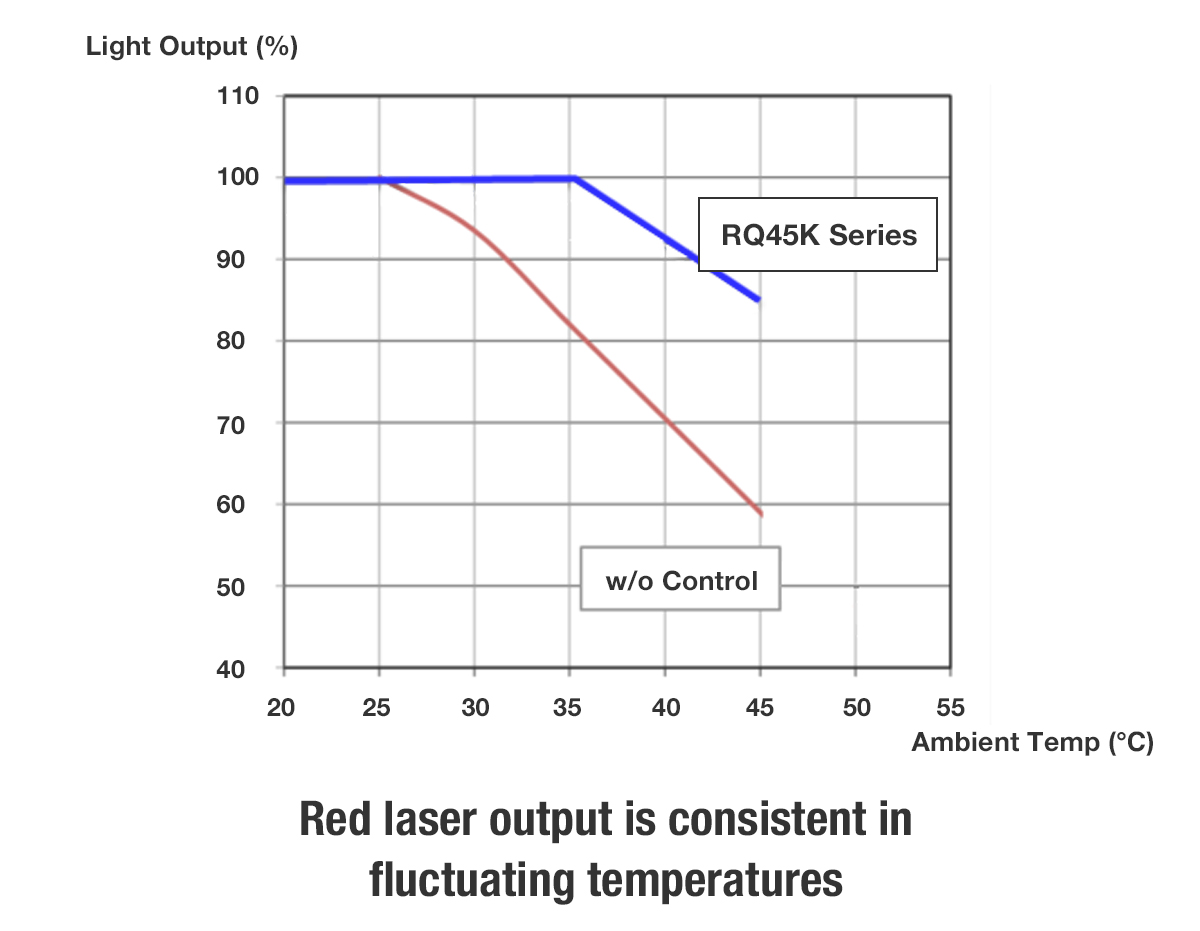

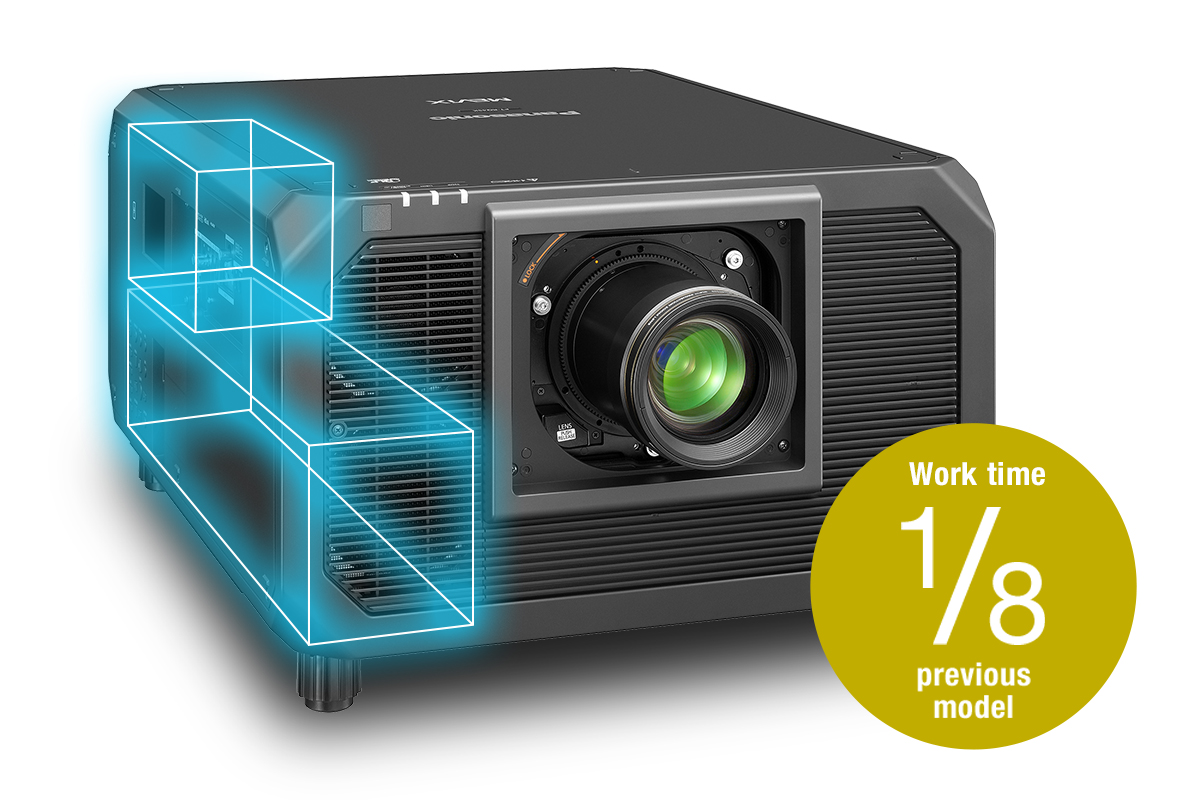

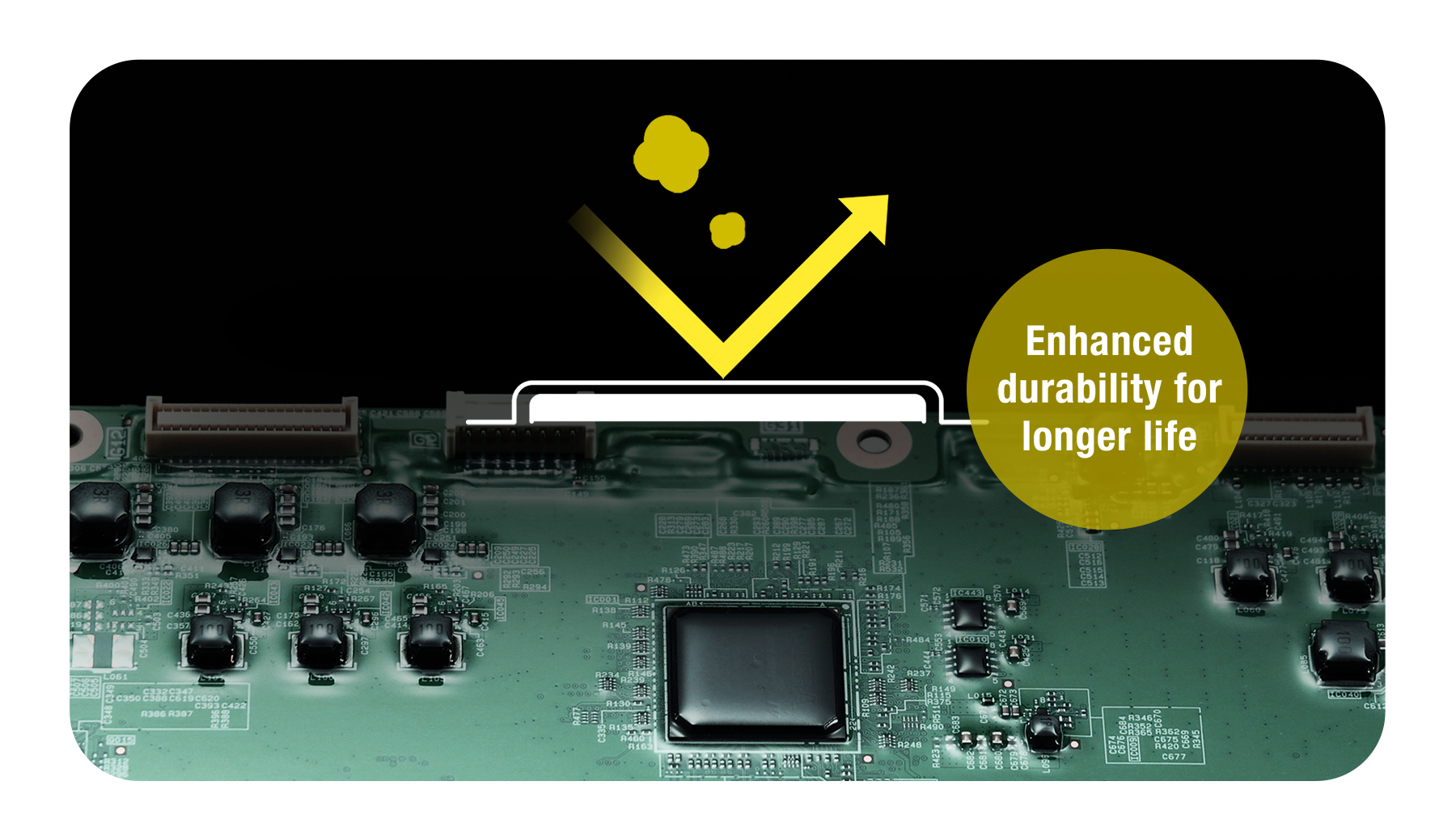

For lasting reliability in demanding environments, key circuit boards feature a UV coating to inhibit corrosion from fumes and salt, while a new modular board layout dramatically improves maintenance efficiency. Proprietary Dynamic Digital Control and a dedicated cooling system stabilize red laser performance under temperature fluctuations to maintain consistent color output. Multi-Laser Drive Engine and Backup Input help prevent show interruptions even in the event of equipment failure.
Spectacular 4K Visuals for Mapping Applications

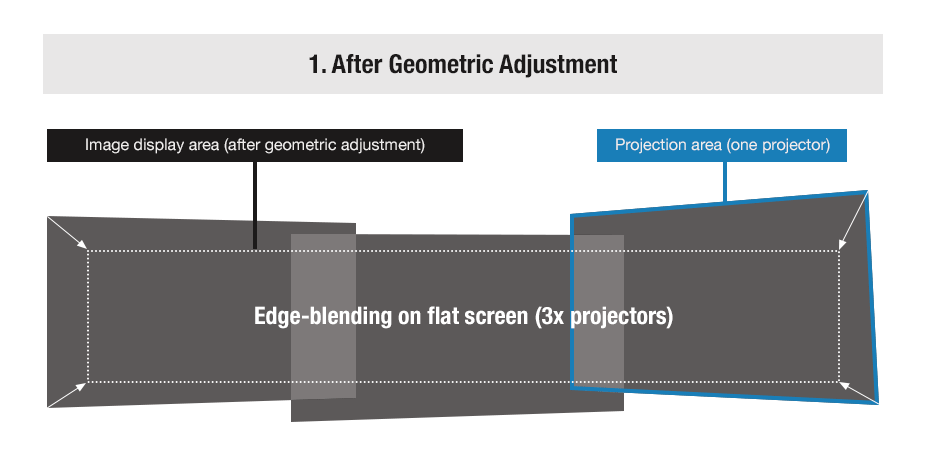

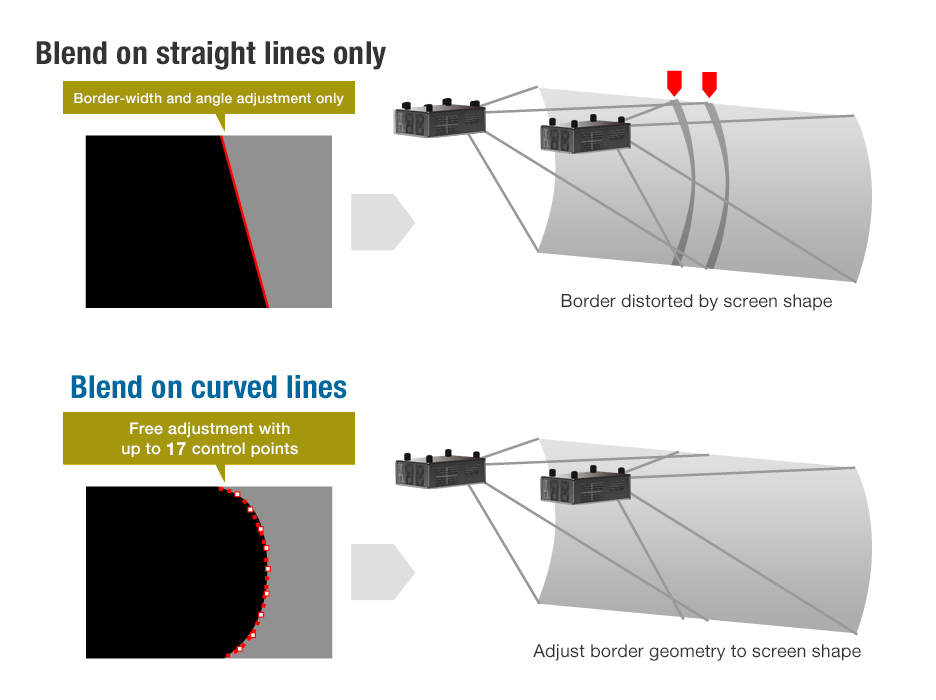

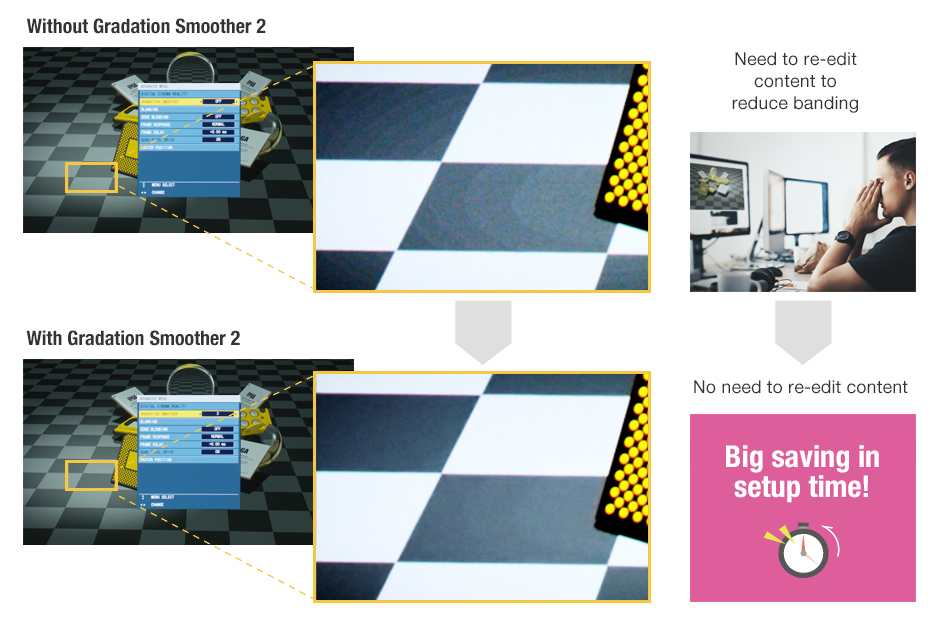

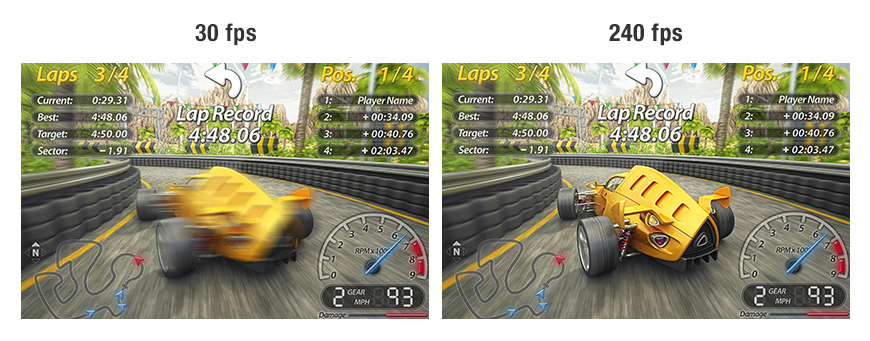

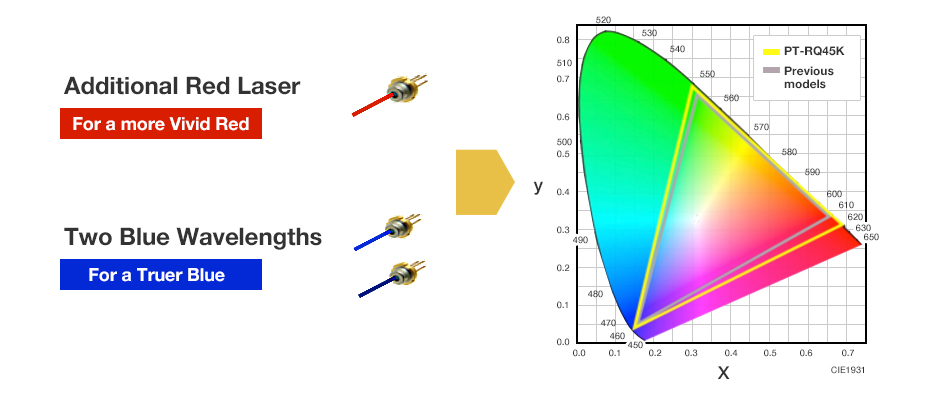

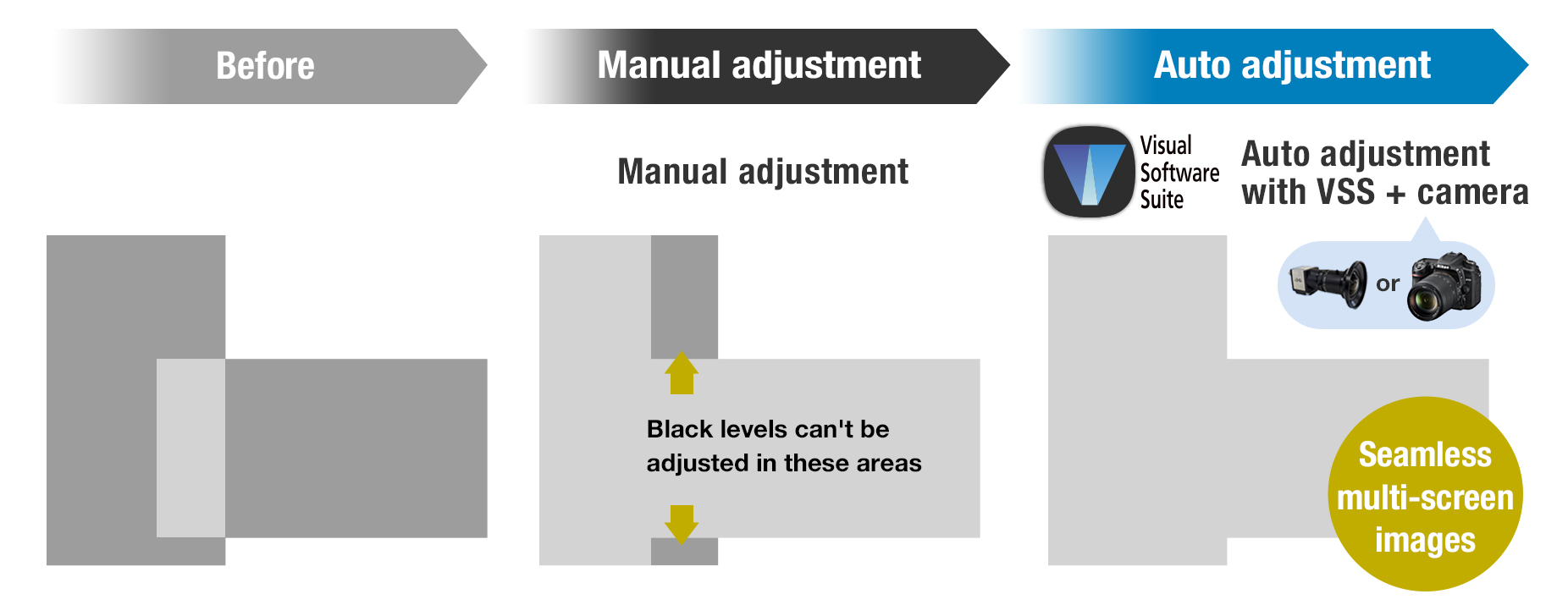

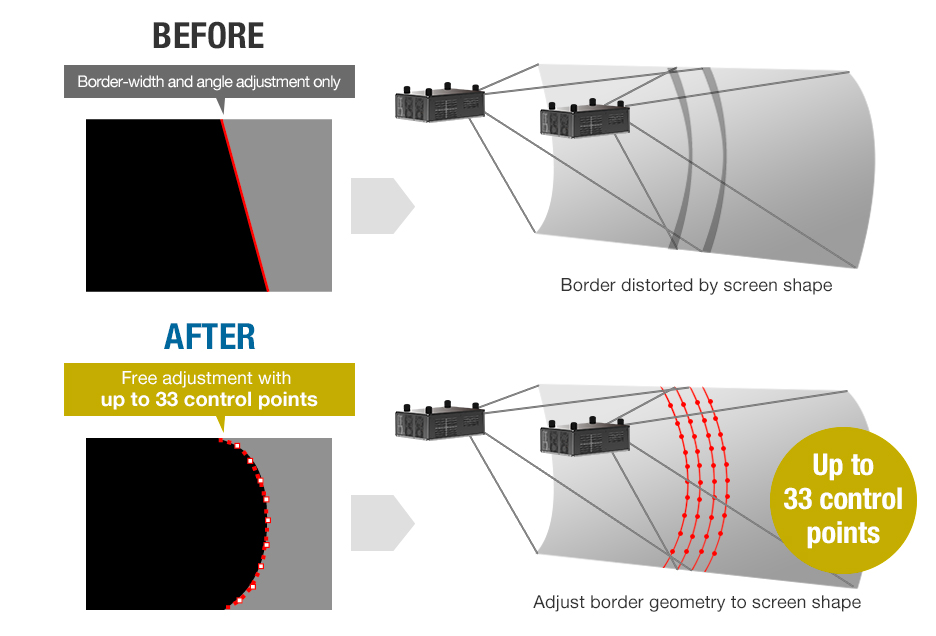

The RQ45K Series' 3-Chip DLP™ architecture, Quad Pixel Drive2, and multi-laser light source (two blue, one red) deliver richly accurate color with smooth, detailed 4K (3840 x 2400) resolution2. Support for frame-rates up to 240 Hz/1080p3 enables fluid motion reproduction and compatibility with the optional Real-Time Tracking Projection Mapping system10. Gradation Smoother removes color banding on the fly, while enhanced Black Level Correction ensures seamless blending on flat or curved screens.
1 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. With ET-D3LES250 lens attached. The value varies depending on the lens. Measurement, measuring conditions, and notation method all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
2 PT-RQ45K only. Maximum physical resolution 3840 x 2400 pixels with QUAD PIXEL DRIVE: [ON].
3 PT-RQ45K only. Supports input signals up to 1080p. The display frame rate corresponds to the input signal frame rate.
4 Input signals to the PT-RZ44K are converted to the projector’s display resolution upon playback. YPBPR 4:2:0 format only for 4K/60p signals input via DIGITAL LINK.
5 Requires optional TY-SB01DL DIGITAL LINK Terminal Board.
6 PT-RZ44K only.
7 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. With ET-D3LES250 lens attached. The value varies depending on the lens. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.
8 Optional proprietary and third-party function boards are sold separately. Panasonic Projector & Display Corporation cannot guarantee the operation of third-party devices.
9 PT-RQ45K only.
10 Optional ET-SWR10 Software Development Kit (SDK) is used with third-party devices (sold separately). Compatibility with third-party devices cannot be guaranteed, and other conditions apply. For more information, please visit the ET-SWR10 webpage.
Specifications (Tentative)
As of June 2025
| PT-RQ45K | PT-RZ44K | |
|---|---|---|
| Projector type | 3-Chip DLP™ projector | |
| DLP™ chip | ||
| Panel size | 24.4 mm (0.96 in) diagonal (16:10 aspect ratio) | |
| Display method | DLP™ chip x 3, DLP™ projection system | |
| Number of pixels | 2,304,000 (1920 x 1200 pixels) x 3 | |
| Light source | Laser diodes (Blue LD, Red LD) | |
| Light output1, 2
?
ISO/IEC 21118: Brightness measured complied with ISO/IEC 21118: 2020 international standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m2). Value is the average of all products when shipped. ANSI lm: Brightness measured complied with American National Standards Institute standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m2). Value is the average of all products when shipped. Result of Brightness measured complied with ISO/IEC 21118 and ANSI will be same. Center lm: Measured Illumination level at the center of screen (lux) multiplied by projected area (m2). Value is the average of all products when shipped. When comparing projectors, it's essential to ensure that the brightness ratings are measured using the same standard to get an accurate comparison. |
40,000 lm3 / 40,000 lm (ANSI)4 (TBD) | |
| Time until light output declines to 50 %5 |
20,000 hours (NORMAL), 24,000 hours (ECO), 26,000 hours (QUIET) | |
| Resolution | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) | WUXGA (1920 x 1200 pixels) |

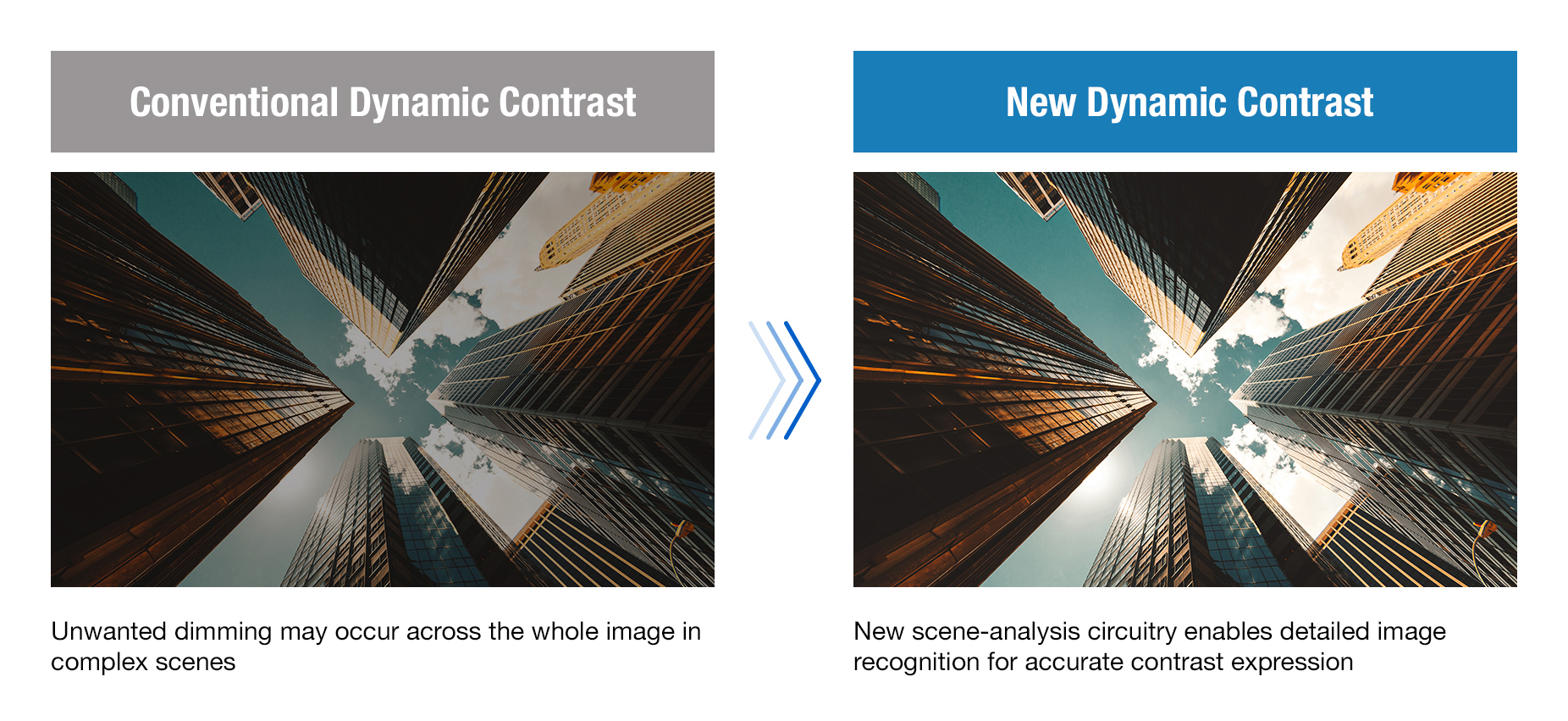

| Contrast ratio3 | 25,000:1 (Full On/Full Off, Dynamic Contrast [3]) (TBD) | |
| Screen size (diagonal) | 1.78–25.40 m (70–1000 in) (depending on attached lens) | |
| Center-to-corner zone ratio3 | 90% | |
| Lens | Optional (no lens included with this model) | |
| Lens shift (From the origin point of the lens mounter) |
||
| Vertical | (TBD) | |
| Horizontal | (TBD) | |
| Keystone correction range | (TBD) | |
| Installation | Ceiling/floor, front/rear, free 360-degree installation | |
| Terminals | ||
| HDMI™ 1/2 IN | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input6) | |
| 12G/3G/HD SDI IN | BNC x 1 | — |
| 3G/HD SDI IN | — | BNC x 1 |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| MULTI PROJECTOR SYNC IN | BNC x 1 | |
| MULTI PROJECTOR SYNC OUT | BNC x 1 | |
| 3D SYNC 1 IN/OUT | — | BNC x 1 (MULTI PROJECTOR SYNC IN dual purpose) |
| 3D SYNC 2 OUT | — | BNC x 1 (MULTI PROJECTOR SYNC OUT dual purpose) |
| REMOTE IN | M3 stereo mini-jack x 1 for wired remote control | |
| REMOTE OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) | |
| LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible | |

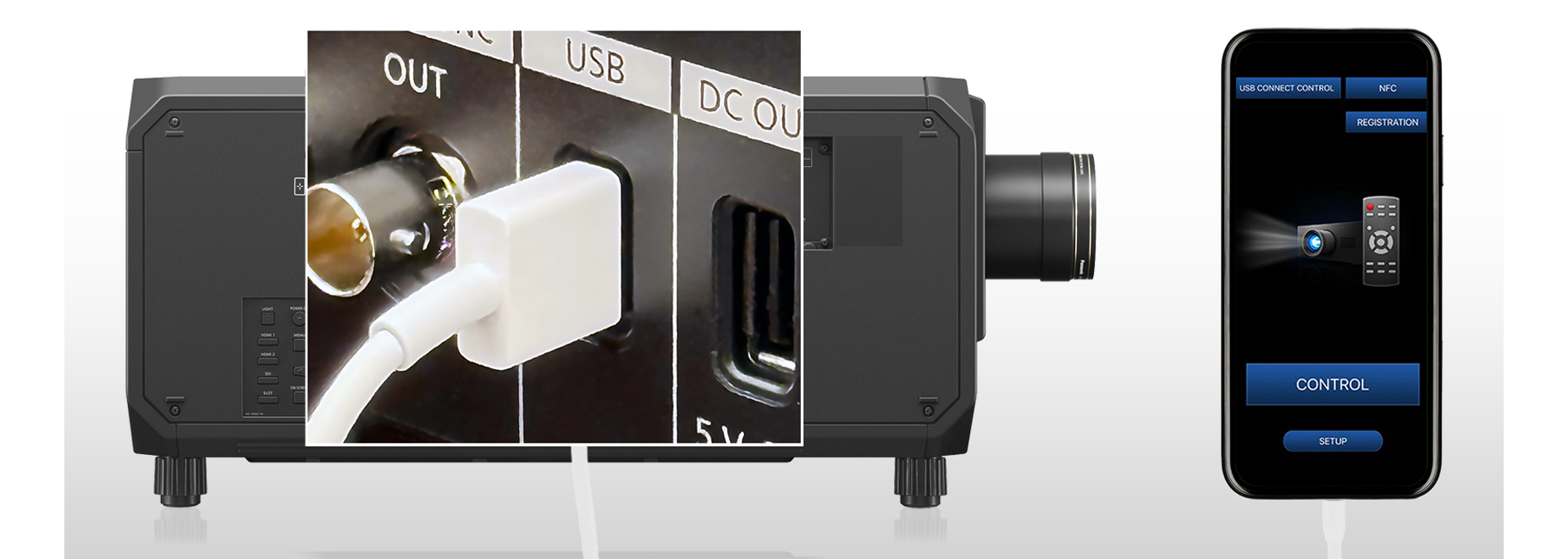

| USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory (dual-use with DC OUT terminal) |
|
| DC OUT | USB Type A x 1 (for power supply, DC 5 V, 2 A) | |
| Expansion slot | Open slot for function boards, Intel® SDM standard-compatible | |
| Protocol versions | IPv4, IPv67 | |
| Power supply | Single-phase AC 100–120 V / Single-phase AC 200–240 V, 50/60 Hz (Light output will decrease when using the projector with AC 100–120 V) |
|
| Maximum power consumption8 | (TBD) | |
| On-mode power consumption (Operating mode)8 |
|
|
| Cabinet materials | Molded plastic | |
| Operation noise3 | (TBD) | |
| Dimensions (W x H x D) |
Approx. 598 x 353 x 780 mm (23 17/32˝ x 13 29/32˝ x 30 23/32˝ ) (not including protruding parts) (TBD) | |
| Weight9 | 70 kg (155 lbs) or less (TBD) | |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)10, operating humidity: 10–80 % (no condensation) | |

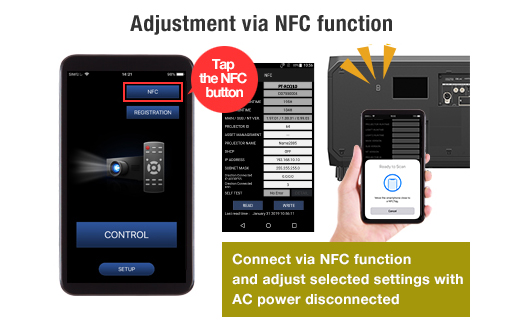

| Applicable software | Multi Monitoring & Control Software, Projector Network Setup Software, Smart Projector Control for iOS/Android™, NFC Upgrade Kit (TBD) |
|
| Control function via LAN |
Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) | |
Note: The PT-RZ44K availability may vary by country or region.
1 When the ET-D3LES250 zoom lens is used. The value varies depending on the lens.
2 When [OPERATING MODE] is set to [NORMAL].
3 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
4 Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.
5 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE] is set to [DYNAMIC], [DYNAMIC CONTRAST] is set to [2]). Estimated time until light output declines to 50 % varies depending on environment.
6 4K signals are converted to WUXGA (1920 x 1200 pixels) only for the PT-RZ44K.
7 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6.
8 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft).
9 Average value. May differ depending on the actual unit.
10 Do not install the projector at an altitude of 4,200 m (13,780 ft) or higher above sea level. (Altitude of 4,200 m [13,780 ft] above sea level is the maximum height that the performance of this projector is guaranteed.) Using the projector in a location where the altitude is too high or the ambient temperature is too high may reduce the life of the components or result in malfunctions. Upper limit of the operating environment temperature varies depending on the altitude above sea level. When using the projector at an altitude between 0 m (0 ft) and 1,400 m (4,593 ft) above sea level: 0 °C (32 °F) to 45 °C (113 °F). When using the projector at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft) above sea level: 0 °C (32 °F) to 40 °C (104 °F). Do not use the projector in a location where the ambient temperature exceeds 40 °C (104 °F) regardless of the altitude when the optional AJ-WM50 Series Wireless Module is attached to the projector.

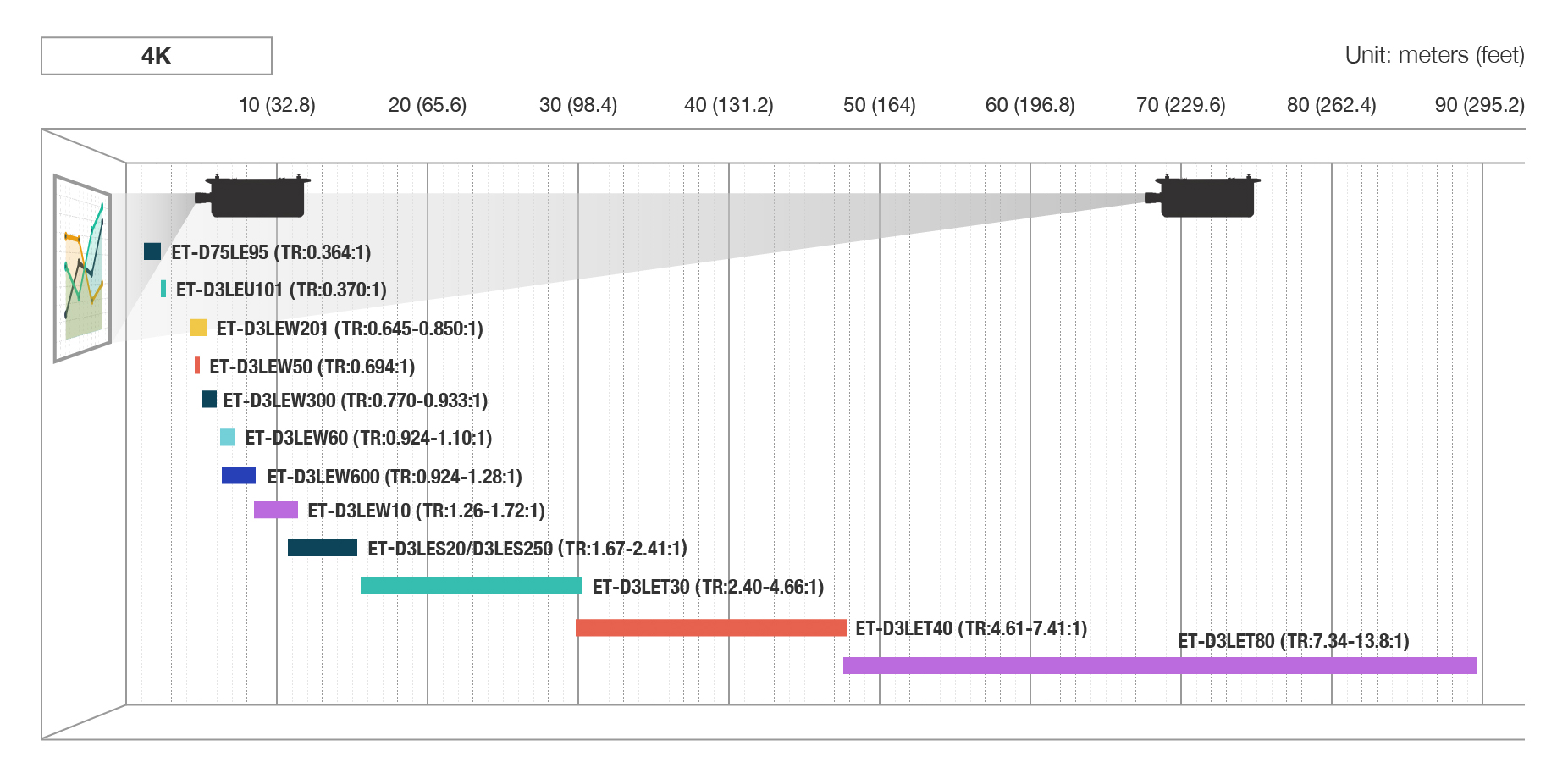

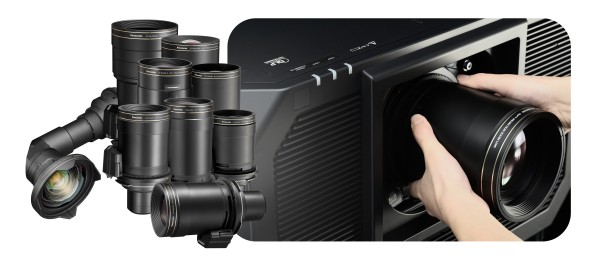

Accessories
- Fixed-Focus Lens
- ET-D75LE95 (0.364:1) / ET-D3LEU1011 (0.370:1)
ET-D3LEW501 (0.694:1)Note: The brightness may be restricted depending on the lens installed.
Throw ratios when inputting 4K or WUXGA signal.1 Equipped with Auto Lens Identification Function.
- Zoom Lens
-
ET-D3LEW2011 (0.645–0.850:1) /
ET-D3LEW3001 (0.770–0.933:1) /
ET-D3LEW601 (0.924–1.10:1) /
ET-D3LEW6001 (0.924–1.28:1) /
ET-D3LEW101 (1.26–1.72:1) /
ET-D3LES2501 (1.67–2.41:1) /
ET-D3LES201 (1.67–2.41:1) / ET-D3LET301 (2.40–4.66:1) /
ET-D3LET401 (4.61–7.41:1) / ET-D3LET801 (7.34–13.8:1)
Note: The brightness may be restricted depending on the lens installed.
Throw ratios when inputting 4K or WUXGA signal.1 Supports Auto Lens Identification and stepping motor functions.
- Fisheye Lens
- ET-ET-D3LEF701
Note: The brightness may be restricted depending on the lens installed.
1 Equipped with Auto Lens Identification Function.
- Lens Fixed Attachments
- ET-PLF101
ET-PLF2021 For the ET-D3LEF70. This attachment may be required in some
installation environments.2 For the ET-D3LEU101/D3LEW201. This attachment is required in some
installation environments.

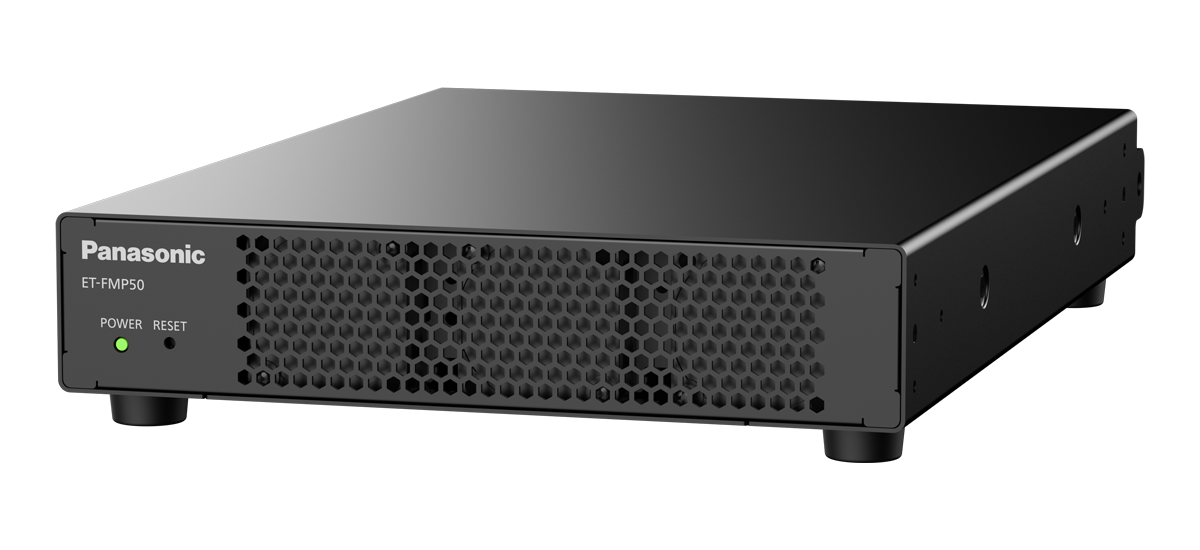

- ET-FMP50 Series Media Processors
- ET-FMP50 / ET-FMP20 / ET-SBFMP10
Note: For more information, please visit:
https://docs.connect.panasonic.com/projector/products/fmp50 - Function Boards
- Media Processor Board (ET-SBFMP10) /
12G-SDI Optical Function Board (TY-SB01FB) /
12G-SDI Terminal Board (TY-SB01QS) /
DIGITAL LINK Terminal Board (TY-SB01DL) /
Wireless Presentation System Receiver Board
(TY-SB01WP) - Wireless Module
- AJ-WM50 Series
Note: Product availability may vary by country or region.
The suffix at the end of the model number is omitted.
Operating temperature: 0–40 °C (32–104 °F). - NFC Upgrade Kit
- ET-NUK10
Note: Product availability may vary by country or region.
- Wireless Presentation System PressIT
- TY-WPS2 (Basic Set)
Note: Product availability may vary by country or region.
Visit https://docs.connect.panasonic.com/prodisplays/products/ty-wps2/
for more information. - Real-Time Tracking Projection Mapping System
- ET-SWR10
Note: PT-RQ45K only. Conditions apply.
Availability may vary by country or region.
Visit https://docs.connect.panasonic.com/projector/products/swr10
for more information.
