LED Display
LV SeriesTL-55LV12ANEW
Reduces the burden of installation, operation, and maintenance, enabling long-term stable performance
| TL-55LV12A | |
|---|---|
| Screen size (Diagonal) | 55-inch class (54.92-inch/1395.1 mm) |
| LED type / LED pitch | Flipchip COB / 1.26 mm |
| Resolution (H x V) | 960 x 540 |
| Max input resolution | 3840 x 2160 |
| Brightness | 800 cd/m² |
Related video
Features
- Delivers an immersive visual experience
- With 800 cd/m² high brightness, a wide color gamut, and a high contrast ratio (10,000:1), it delivers vivid, clear images even in bright environments.
The LV Series features a seamless large-screen display with no visible joints. It enhances visual immersion and impact, improving brand image and communication effectiveness. - Supports simplified installation and a streamlined system configuration
- Lightweight at approximately 18.3 kg and featuring a slim profile of approximately 29 mm, it significantly reduces the burden of transport and installation. In addition, its built-in design eliminates the need for an external controller, while HDMI™ daisy-chain connectivity* enables a simple system configuration. Minimizes effort from installation through operation.
* Up to 4 displays can be connected for video and control signals (HDMI™).
Power supply (landscape installation): Up to 4 displays can be connected vertically
Power supply (portrait installation): Up to 4 displays can be connected horizontally - Enables reduced maintenance costs and stable operation
- The LV Series uses long-life, low-power-consumption COB LED modules and supports 24/7 operation. It also offers excellent resistance to minor impacts and stains. With its front-access design, key components such as modules, power units, and circuit boards can be removed and replaced from the front, helping reduce maintenance effort and operating costs.

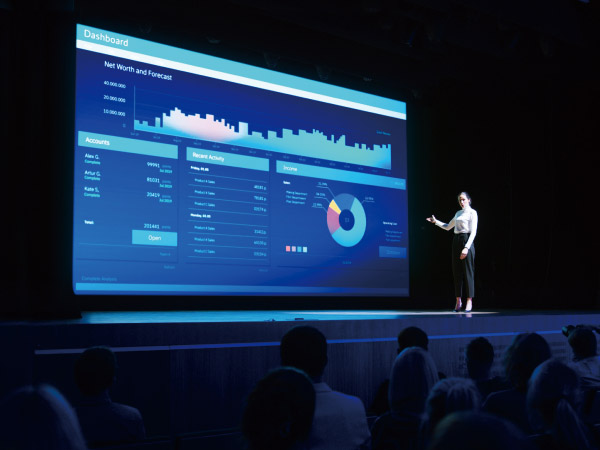

Delivers Immersive Visuals That Feel Like a Single Image
With a high contrast ratio of 10,000:1, the LV Series delivers vivid, clear images even in bright environments.
Its creates a seamless large-screen display with no visible joints, providing an immersive viewing experience and strong visual impact while enhancing brand image and improving communication effectiveness.
Comparison of a 55-inch Multi-Screen LCD Display and a 110-inch LED Display
Faithfully Reproduces the Appeal of Content with a Wide Color Gamut
The LV Series uses RGB three-color LED elements and features a wide color gamut.
Compared with LCD displays, it delivers richer color reproduction, bringing out the full appeal of displayed content.
*Images are for illustrative purposes only.

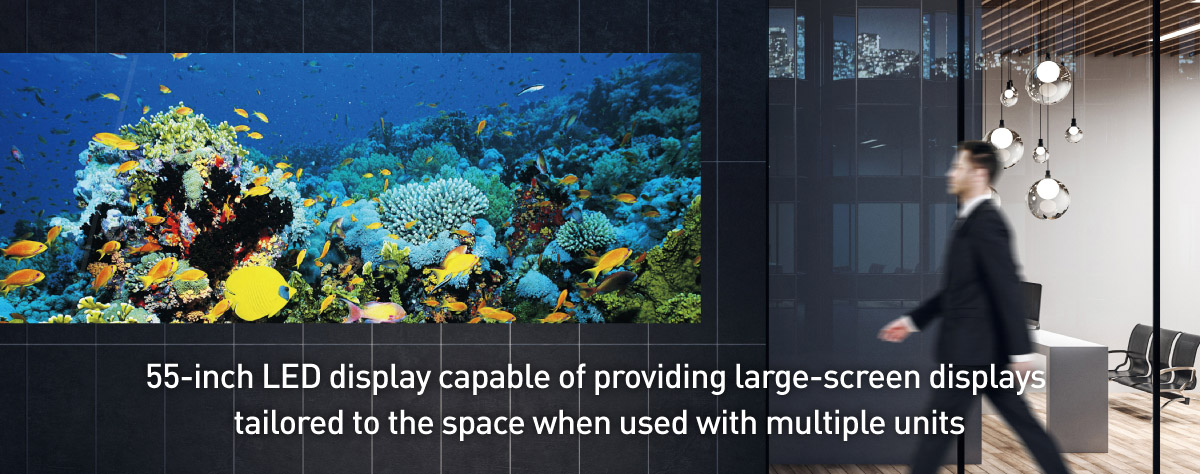

Flexible Sizing and Layout to Suit Any Space
The LV Series allows you to create the ideal large-screen configuration for your application by combining multiple 55-inch displays. It also supports portrait installation, enabling seamless integration into a wide range of spaces.
Dedicated LED Manager LV (Free) software is available for configuring and controlling the LED display directly from a computer.
*The LED modules must be installed after the cabinets have been installed and connected.
•Images are for illustrative purposes only.
Lightweight, Slim Design for Easier Installation
The LV Series features a lightweight design of approximately 18.3 kg and an ultra-slim profile of just 29 mm. Easy to handle like an LCD display, it significantly reduces the effort required for transportation and installation. Its slim design also allows installation in confined spaces, helping reduce installation time and costs.

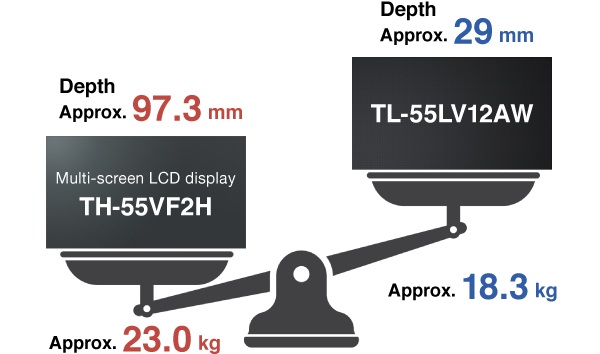

Comparison with a Multi-Screen LCD Display
Compatible with Two Mounting Bracket Options to Suit Any Installation Environment
In addition to dedicated mounting brackets, the LV Series is compatible with VESA-compliant (400 × 400 mm) mounting brackets.
Whether replacing an existing multi-screen LCD display while reusing existing stands and mounting brackets or creating a large-format display with dedicated mounting brackets, the LV Series offers the installation flexibility to suit a wide range of on-site requirements.
1. Compatible with Mounting Brackets
The 55-inch unit features VESA-compliant 400 × 400 mm mounting holes.
2. Compatible with Dedicated Wall-Mount Brackets (Optional)
For multi-screen and other multi-unit installations, dedicated mounting brackets are attached between the 55-inch units and at both ends, simplifying the installation of large-format displays.
*If using existing mounting brackets, verify the adjustment range and other installation requirements in advance.
Create Large-Format Displays with Simple Cabling
The all-in-one design eliminates the need for an external controller. Video signals, control signals, and power can be daisy-chained*, enabling a large-format display system with simple cabling. A single HDMI™ input supports daisy-chain connection of up to four units, reducing the effort required for both installation and operation.
*Video and control signals (HDMI™) can be daisy-chained to up to four units.
*For power connections:
Landscape installation: Up to four units can be connected vertically.
Portrait installation: Up to four units can be connected horizontally.
Featuring COB LED Modules
The LV Series features COB LED modules with a 100,000-hour half-brightness lifespan* and supports continuous 24/7 operation. It also offers excellent resistance to minor impacts and stains, delivering outstanding reliability in demanding environments such as public facilities and surveillance applications.
*The 100,000-hour lifespan is an estimate of the time until the display brightness decreases to 50% under an ambient temperature of 25°C (±2°C).
Energy-Efficient Design That Benefits Both the Environment and Your Budget
Power consumption is as low as 170 W at a brightness of 800 cd/m² (factory default setting).
Compared with our conventional multi-screen LCD display (Model TH-55VF2H), power consumption is reduced by approximately 30%. This helps reduce operating costs and environmental impact during long-term operation, supporting more sustainable business practices.
Enables More Efficient Maintenance Work
The front-access design allows key components, including LED modules, power supply units, and circuit boards, to be removed and replaced from the front. Even when the display is wall-mounted, maintenance can be performed efficiently, minimizing downtime. This helps reduce maintenance effort and operating costs.
