Large-Venue3-Chip DLP™ Projectors

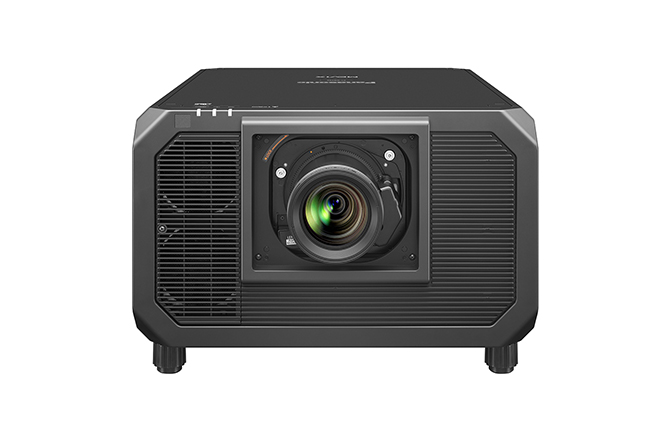

PT-RQ45K SeriesPT-RQ45K / PT-RZ44K
 PT-RQ45K |
 PT-RZ44K |
|
|---|---|---|
| Projector type | 3-Chip DLP™ projector | |
| DLP™ chip | ||
| Panel size | 24.4 mm (0.96 in) diagonal (16:10 aspect ratio) | |
| Number of pixels | 2,304,000 (1920 x 1200 pixels) x 3 | |
| Light source | Laser diodes (Blue LD, Red LD) | |
| Light output1, 2
?
ISO/IEC 21118: Brightness measured complied with ISO/IEC 21118: 2020 international standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m2). Value is the average of all products when shipped. ANSI lm: Brightness measured complied with American National Standards Institute standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m2). Value is the average of all products when shipped. Result of Brightness measured complied with ISO/IEC 21118 and ANSI will be same. Center lm: Measured Illumination level at the center of screen (lux) multiplied by projected area (m2). Value is the average of all products when shipped. When comparing projectors, it's essential to ensure that the brightness ratings are measured using the same standard to get an accurate comparison. |
42,000 lm3 / 42,000 lm (ANSI)4 / 43,600 lm (Center)5 | |
| Time until light output declines to 50 %6 | 20,000 hours (NORMAL), 24,000 hours (ECO), 26,000 hours (QUIET) | |
| Resolution | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) |
WUXGA (1920 x 1200 pixels) |
| Contrast ratio3 | 25,000:1 (Full On/Full Off, Dynamic Contrast [3]) | |
| Screen size (diagonal) | 1.78–25.40 m (70–1000 in) (Depending on attached lens) | |
| Center-to-corner zone ratio3 | 90 % | |
| Lens | Optional (No lens included with this model) | |
| Lens shift (From the origin point of the lens mounter) |
||
| Vertical | ±55 % (+68 %, +78 % with ET-D75LE95, ±48 % with ET-D3LEW201, ±44 % with ET-D3LEW60/D3LEW300/D3LEW600) (Powered) | |
| Horizontal | ±20 % (±15 % with ET-D3LEW300/D3LEW600/D3LEW201, ±12 % with ET-D75LE95, 0 %, +25 % with ET-D3LEU101) (Powered) | |
| Keystone correction range | Vertical: ±45 ° (± 40 ° with ET-D3LEW10/D3LES20/D3LES250, ±28 ° with ET-D3LEW60/D3LEW600, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW201/D3LEW300, ±8 ° with ET-D3LEU101, +5 ° with ET-D75LE95); Horizontal: ±40 ° (±15 ° with ET-D3LEW50/D3LEW60/D3LEW600, ±5 ° with ET-D3LEU101/D3LEW201/D3LEW300, 0 ° with ET-D75LE95) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |
|
| Terminals | ||
| HDMI™ 1/2 IN | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input7) | |
| 12G/3G/HD SDI IN | BNC x 1 | — |
| 3G/HD SDI IN | — | BNC x 1 |
| SERIAL IN | D-sub 9-pin (Female) x 1 for external control (RS-232C compliant) | |
| MULTI PROJECTOR SYNC IN |
BNC x 1 | |
| MULTI PROJECTOR SYNC OUT |
BNC x 1 | |
| 3D SYNC 1 IN/OUT | — | BNC x 1 (MULTI PROJECTOR SYNC IN dual purpose) |
| 3D SYNC 2 OUT | — | BNC x 1 (MULTI PROJECTOR SYNC OUT dual purpose) |
| REMOTE IN | M3 stereo mini-jack x 1 for wired remote control | |
| REMOTE OUT | M3 stereo mini-jack x 1 for link control (For wired remote control) | |
| LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 100Base-TX/1000Base-T, Art-Net compatible | |
| USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory | |
| DC OUT | USB Type A x 1 (For power supply, DC 5 V, 2 A) | |
| Expansion slot | Open slot for function boards, Intel® SDM standard-compatible | |
| Protocol versions | IPv4, IPv68 | |
| Power supply | Single-phase AC 100–120 V / Single-phase AC 200–240 V, 50/60 Hz (Max. light output limited to 21,000 lm or less when using the projector with AC 100–120 V) | |
| Maximum power consumption9 | 3,170 W | 3,110 W |
| On-mode power consumption (Operating mode)9 |
|
|
| Operation noise3 | 49 dB (NORMAL/ECO), 45 dB (QUIET) | |
| Dimensions (W x H x D) |
598 x 352 x 780 mm (23 17/32˝ x 13 27/32˝ x 30 23/32˝ ) (Not including protruding parts) | |
| Weight11 | Approx. 66.7 kg (147.0 lbs) | Approx. 66.5 kg (146.6 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)12, operating humidity: 10–80 % (No condensation) | |
| Applicable software | Visual Software Suite, Multi Monitoring & Control Software, Projector Network Setup Software, Smart Projector Control for iOS/Android™ |
|
| Control function via LAN | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) | |
1 Value with ET-D3LES250 Zoom Lens and a power supply voltage of AC 200–240 V.
2 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL].
3 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
4 Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.
5 Average light-output value of all shipped products measured at the center of the screen in NORMAL Mode.
6 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE] is set to [DYNAMIC], [DYNAMIC CONTRAST] is set to [2]). Estimated time until light output declines to 50 % varies depending on environment.
7 4K signals are converted to WUXGA (1920 x 1200 pixels) only for the PT-RZ44K.
8 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6.
9 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards.
10 On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft).
11 Average value. May differ depending on the actual unit.
12 The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft) above sea level. The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) when the optional AJ-WM50 Series Wireless Module is attached. When the operating environment temperature exceeds the following value, the light output may be reduced to protect the projector. When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level: 35 °C (95 °F). When using the projector at an altitude between 2,700 m (8,858 ft) and 4,200 m (13,780 ft) above sea level: 25 °C (77 °F).
