Trusted
Projection
For Golf
Simulation.

Panasonic projector Panasonic projector
Deliver professional-grade image quality with easy installation and low maintenance. Designed to thrive in demanding simulation environments, Panasonic projectors provide the reliable,
cost-effective performance you need for immersive, lifelike visuals.
  • Installation Flexibility

    From compact rooms to full-sized sims, flexible throw ratios and lens shift make setup and alignment easy.

  • Long Life, Low
    Maintenance

    Laser reliability for consistent projection.

  • Visuals to Impress
    Every Guest

    Up to 8,000 lm1 brightness and a golf-optimized picture mode deliver vivid, immersive visuals with depth and scale. 1 PT-VMZ82 only. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

  • Smart, Eco-Conscious
    Design

    Low power consumption and versatile eco-management features help reduce electricity costs.

Features

Installation Flexibility

Choose a projector by bay size

Select a projector to see the throw distance needed for a 240-inch screen, and find the best fit for your bay size.

  • PT-VMZ7ST/VMZ6ST PT-VMZ7ST/VMZ6ST
  • PT-VMZ82/VMZ72/VMZ62/VMZ51/VMZ51S PT-VMZ82/VMZ72/VMZ62/VMZ51/VMZ51S
  • PT-VMZ5ES PT-VMZ5ES
  • PT-FRQ60/FRQ50/FRZ60/FRZ50 PT-FRQ60/FRQ50/FRZ60/FRZ50
  • PT-FRZ55 PT-FRZ55
  • PT-RQ7L/RQ6L/RZ7L/RZ6L PT-RQ7L/RQ6L/RZ7L/RZ6L

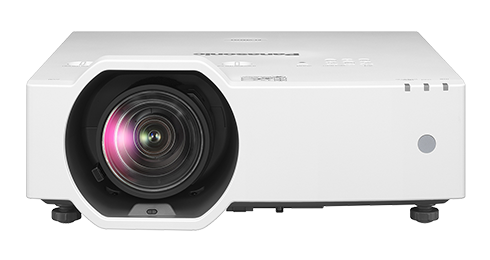

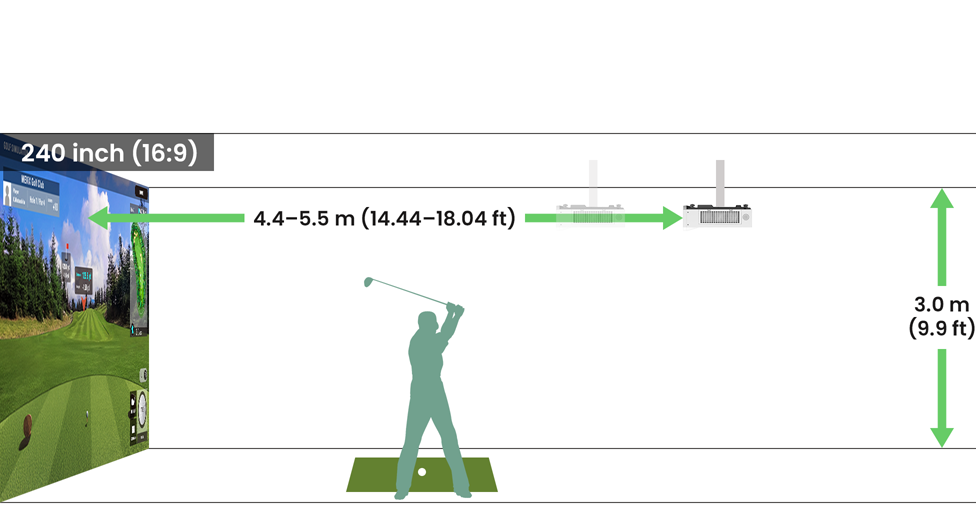

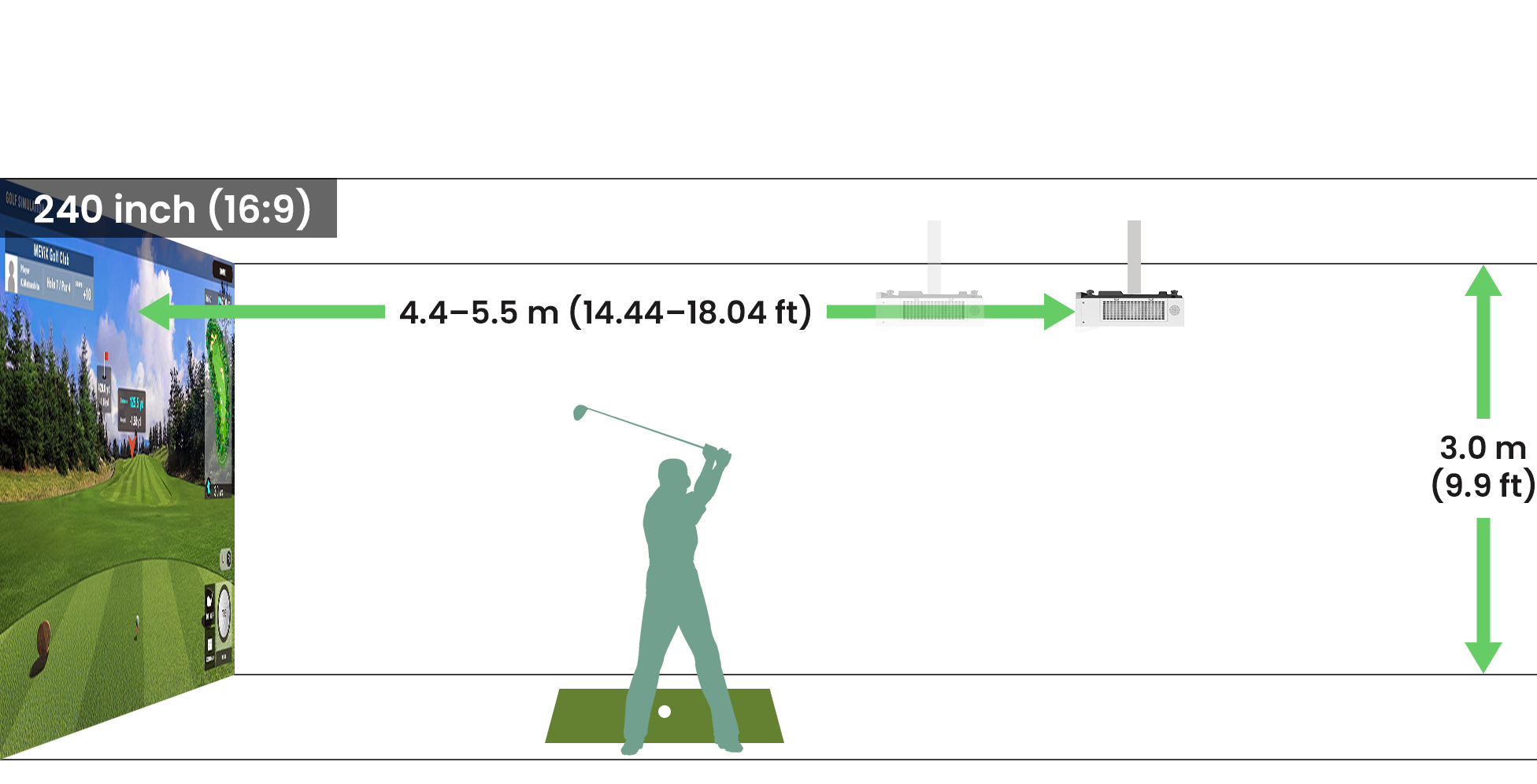

  • PT-VMZ7ST/VMZ6ST

    PT-VMZ7ST/VMZ6ST
    Light output
    PT-VMZ7ST: 7,000 lm
    PT-VMZ6ST: 6,200 lm
    Throw range
    Approx. 4.4–5.5 m
    (14.44–18.04 ft)
    Throw ratio
    0.797–1.01:1
    Weight
    Approx. 8.3–8.4 kg
    (18.3–18.52 lbs)

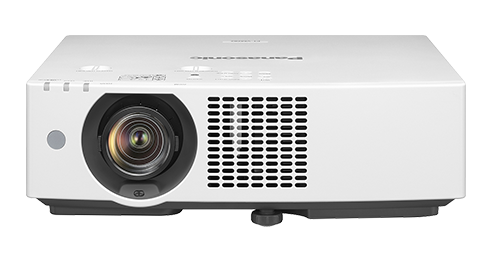

  • PT-VMZ82/VMZ72/VMZ62/VMZ51/VMZ51S

    PT-VMZ82/VMZ72/VMZ62/VMZ51/VMZ51S
    Light output
    PT-VMZ82: 8,000 lm
    PT-VMZ72: 7,300 lm
    PT-VMZ62: 6,500 lm
    PT-VMZ51/VMZ51S: 5,200 lm
    Throw range
    Approx. 5.9–9.5 m
    (19.36–31.17 ft)
    Throw ratio
    1.09–1.77:1
    Weight
    Approx. 6.5–7.4 kg
    (14.33–16.3 lbs)

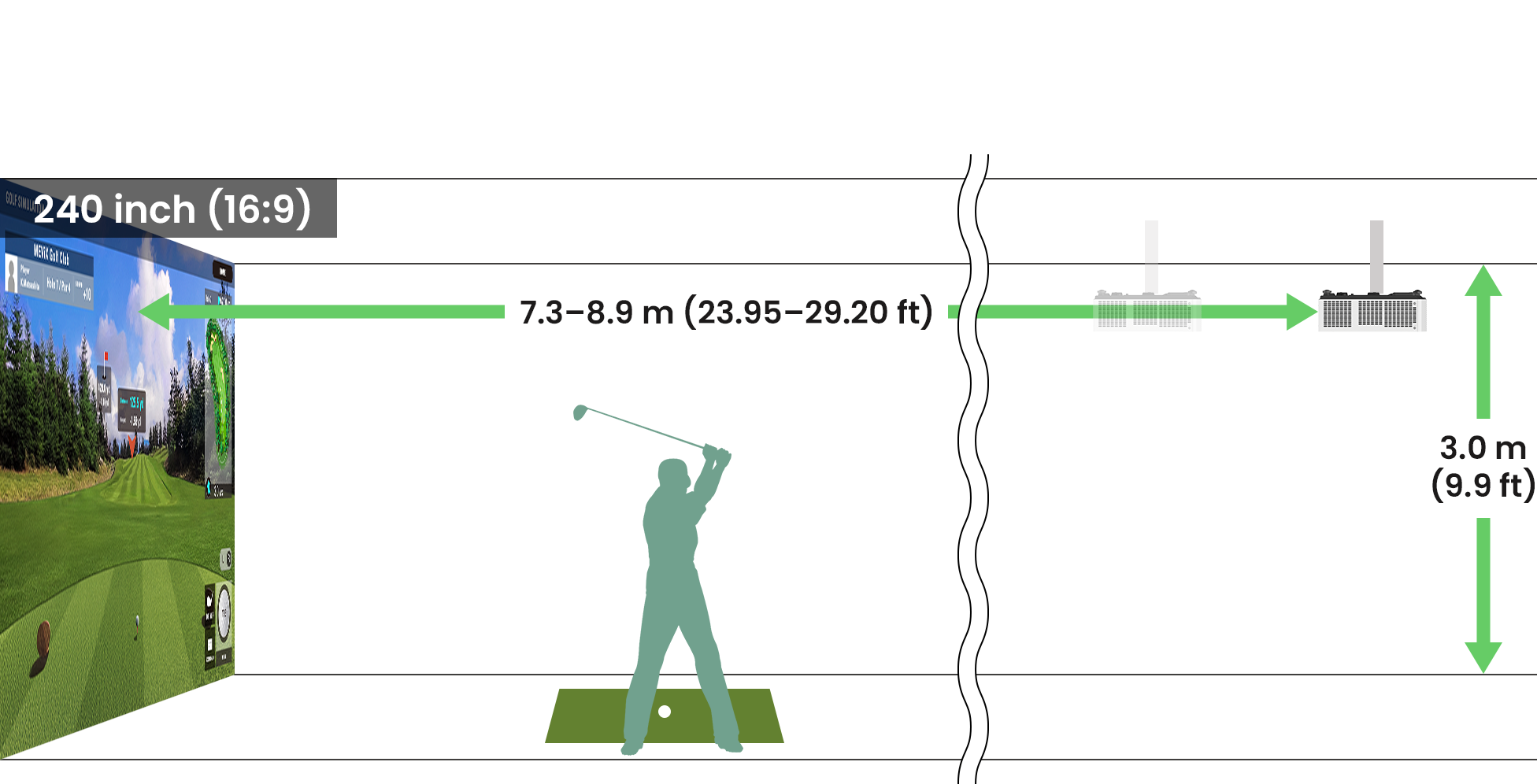

  • PT-VMZ5ES

    PT-VMZ5ES
    Light output
    PT-VMZ5ES: 5,200 lm
    Throw range
    Approx. 7.3–8.9 m
    (23.95–29.20 ft)
    Throw ratio
    1.36–1.64:1
    Weight
    Approx. 6.1 kg
    (13.45 lbs)

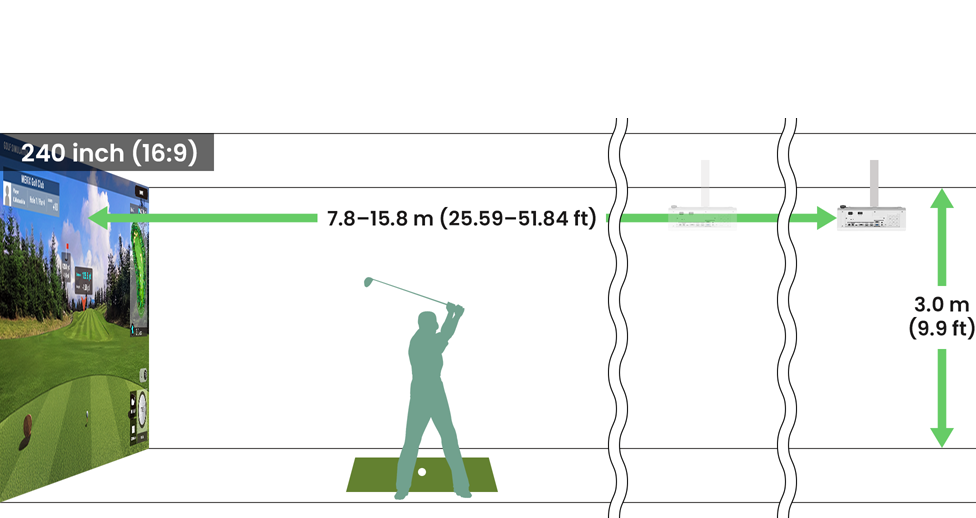

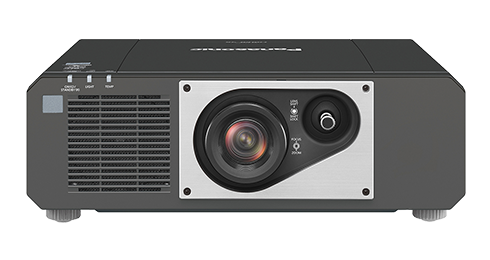

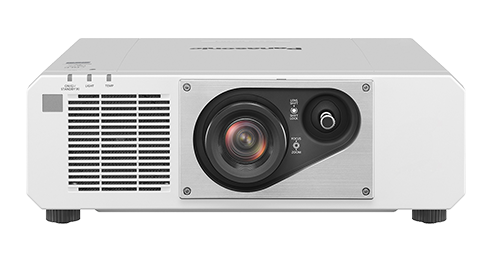

  • PT-FRQ60/FRQ50/FRZ60/FRZ50

    PT-FRQ60/FRQ50/FRZ60/FRZ50
    Light output
    PT-FRQ60/FRZ60: 6,000 lm
    PT-FRQ50/FRZ50: 5,200 lm
    Throw range
    Approx. 7.8–15.8 m
    (25.59–51.84 ft)
    Throw ratio
    1.46–2.93:1
    Weight
    Approx. 16.0–16.4 kg
    (35.3–36.2 lbs)

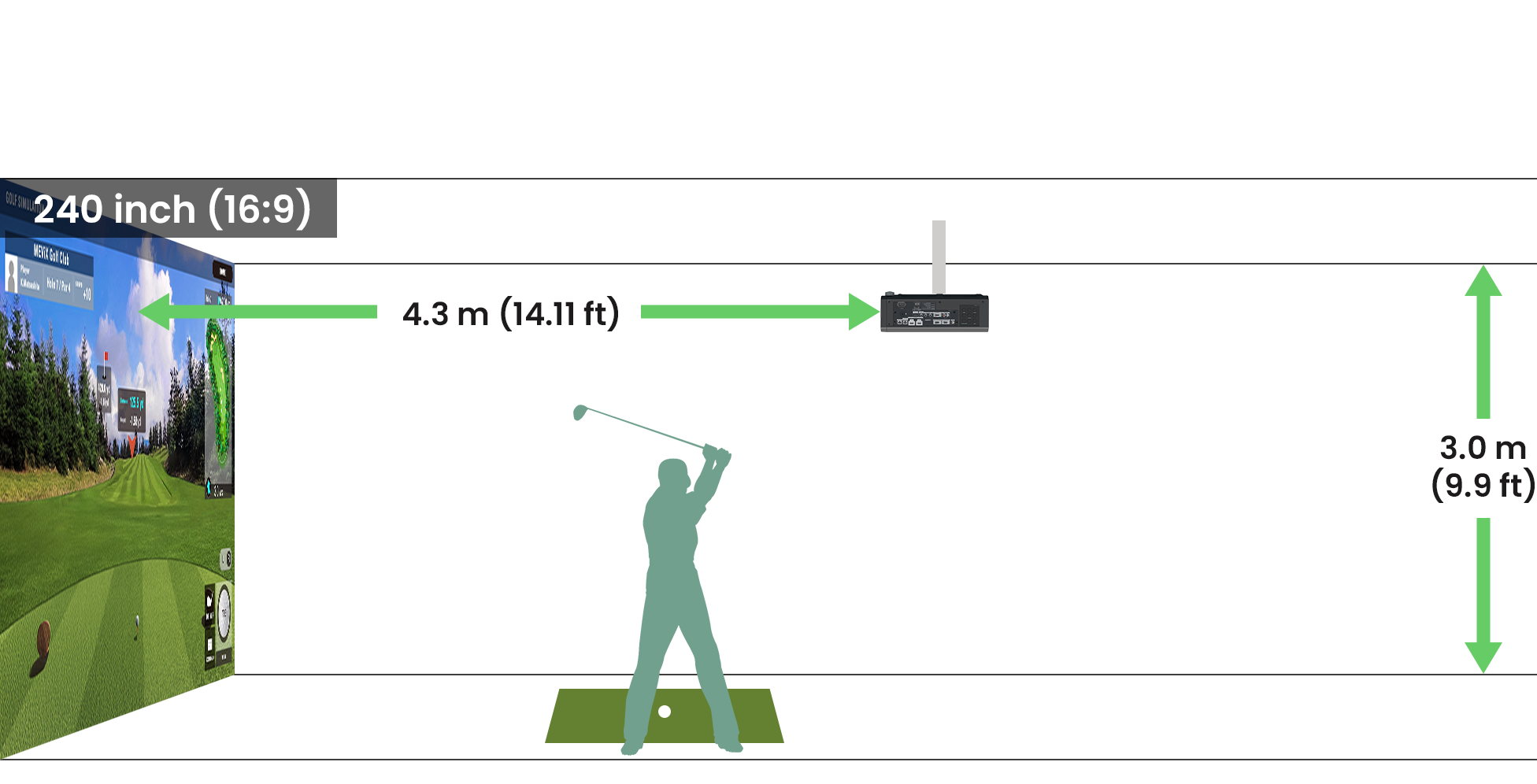

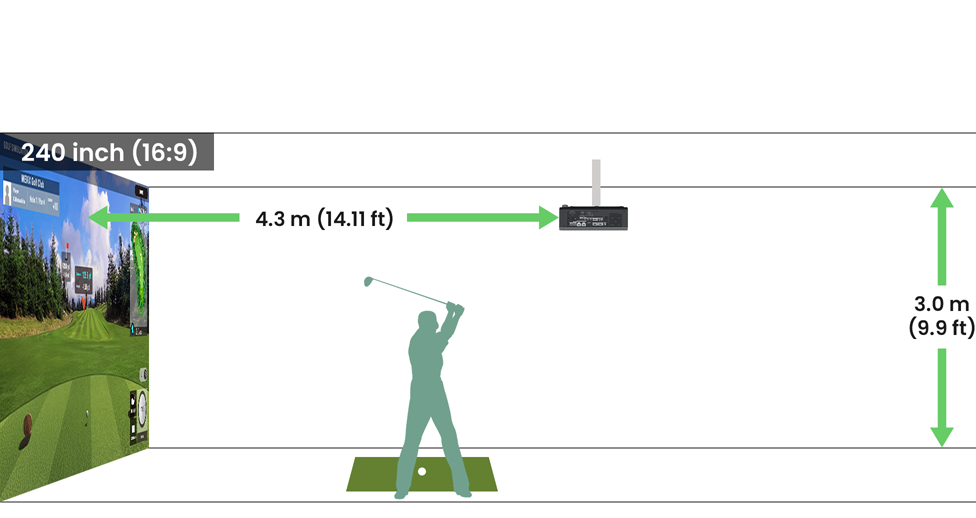

  • PT-FRZ55

    PT-FRZ55
    Light output
    PT-FRZ55: 5,000 lm
    Throw range
    Approx. 4.3 m
    (14.11 ft)
    Throw ratio
    0.8:1
    Weight
    Approx. 16.4 kg
    (36.1 lbs)

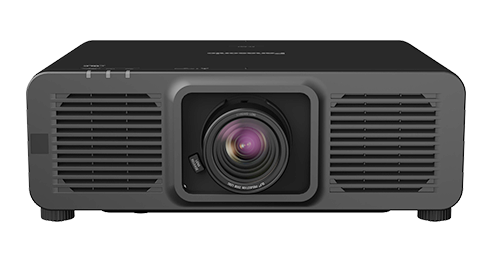

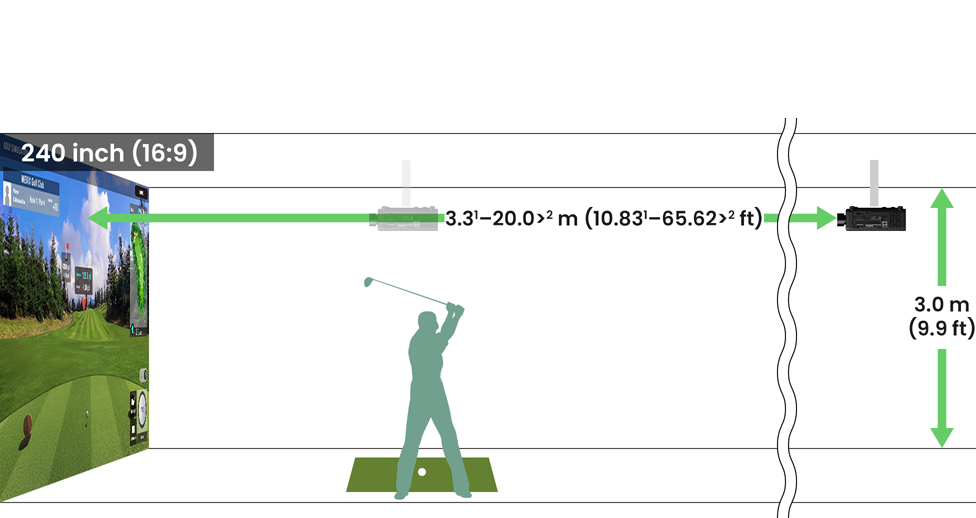

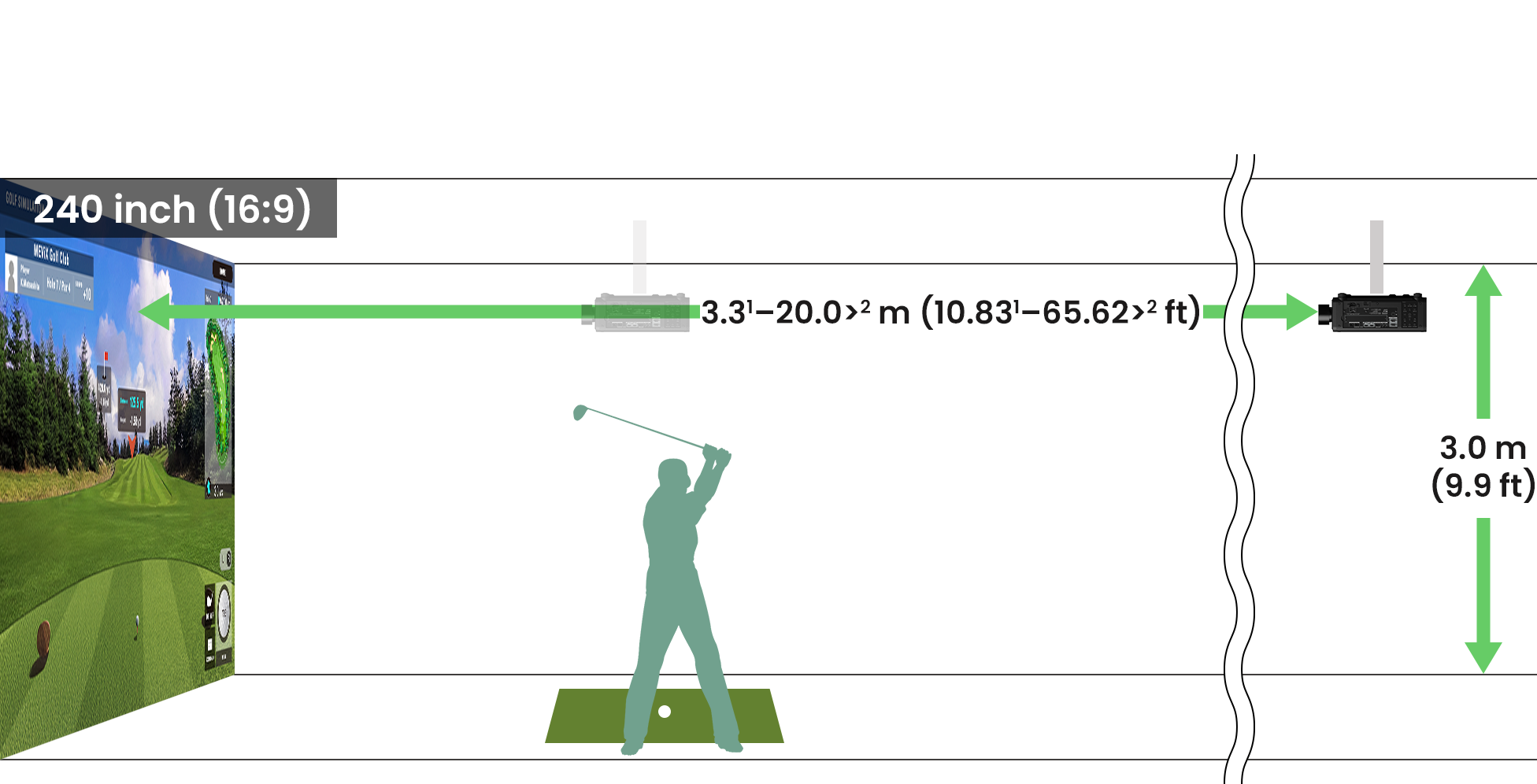

  • PT-RQ7L/RQ6L/RZ7L/RZ6L

    PT-RQ7L / RQ6L / RZ7L / RZ6L
    Light output
    PT-RQ7L/RZ7L: 7,500 lm
    PT-RQ6L/RZ6L: 6,500 lm
    Throw range
    Approx. 3.31–20.0>2 m (10.831–65.62>2 ft)
    Throw ratio
    0.597–0.797:13
    Weight
    Approx. 16.6 kg
    (36.59 lbs)
    (w/o lens)

Note: The projectors shown as installable are for reference only. Please consult your dealer or our company for details on specific models.

1 With the optional ET-DLE060 lens. When using the optional ET-DLE020 lens, projection is possible from a distance of 1.5–1.6 m (4.92–5.25 ft).

2 Throw range varies depending on the lens used.

3 With the optional ET-DLE060 lens.

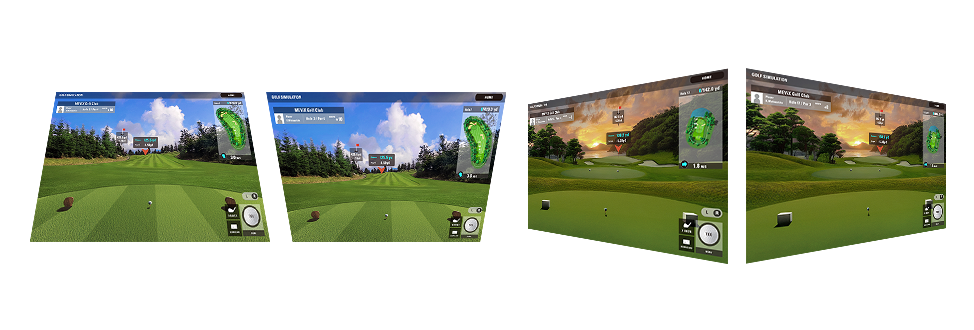

Versatile screen adjustment functions

H/V Keystone Correction
H/V Keystone Correction
Corrects vertical and horizontal keystone distortion

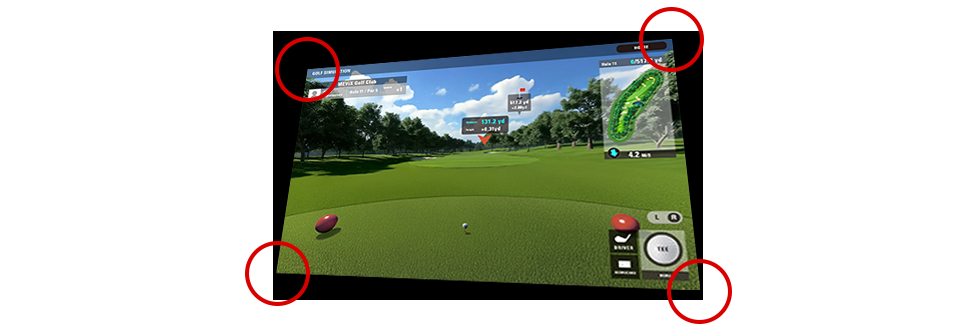

4-Corner Correction
4-Corner Correction
Corrects distortion in each corner caused by diagonal projection

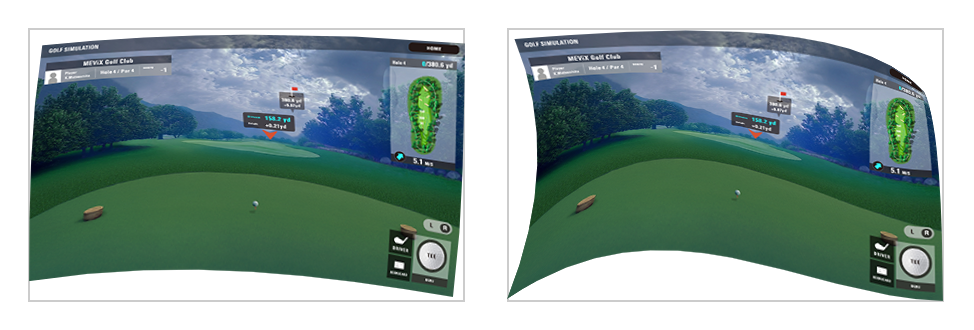

Curved Screen Correction
Curved Screen Correction
H/V arc allows each side to be adjusted independently

Note: Only PT-VMZ5ES supports correction in four corners.

Long Life, Low Maintenance

20,000-hour lifespan laser and filter1
Experience bright, reliable projection with consistent image quality and minimal maintenance. SOLID SHINE laser and
20,000-hour ECO Filter1 ensure long-lasting performance.

1 Only LCD models have a filter. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3) or 10,000 hours
(under dust conditions of 0.15 mg/m3).

SOLID SHINE Laser
SOLID SHINE Laser
Long-Life ECO Filter
Long-Life ECO Filter

Note: LCD models only.

Visuals to Impress Every Guest

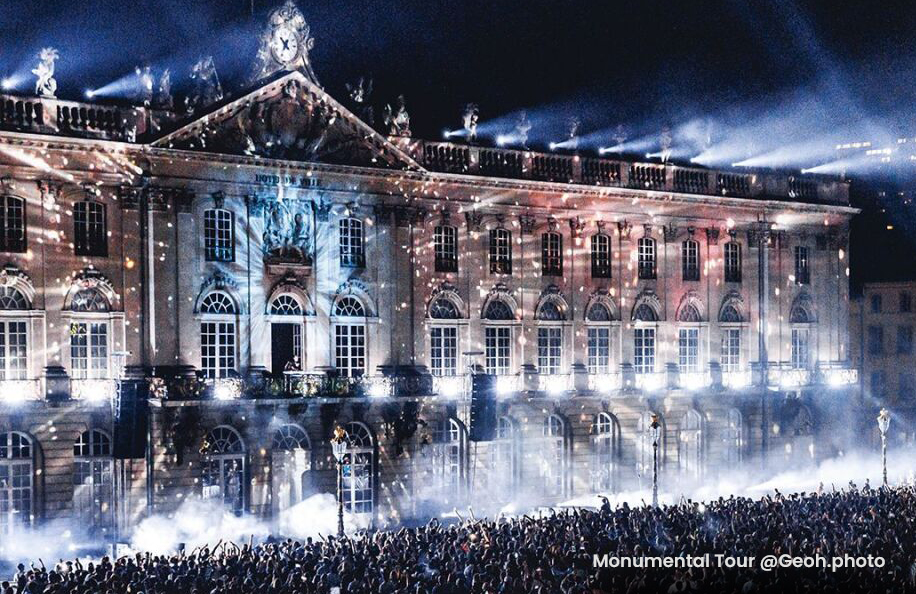

Image quality trusted by the high-end market
Image quality trusted by
the high-end market
Panasonic holds the No. 1 market share in high-brightness projectors and is trusted worldwide by professionals for outstanding image quality.

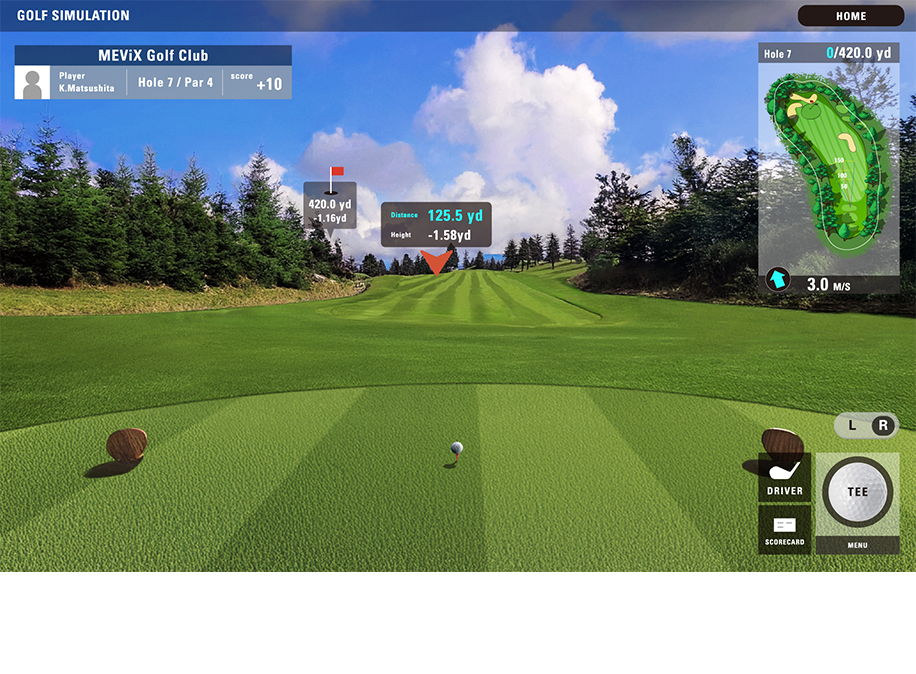

Golf-optimized Vivid Green mode green
Golf-optimized Vivid Green mode
Developed in collaboration with golf simulation manufacturers, this mode enhances contrast, reproduces natural turf colors, and is tuned specifically for golf simulation. It delivers vivid image quality while also reducing power consumption by lowering light output without sacrificing visual brightness.

Note: PT-VMZ82 Series and PT-VMZ7ST Series only.

Smart, Eco-Conscious Design

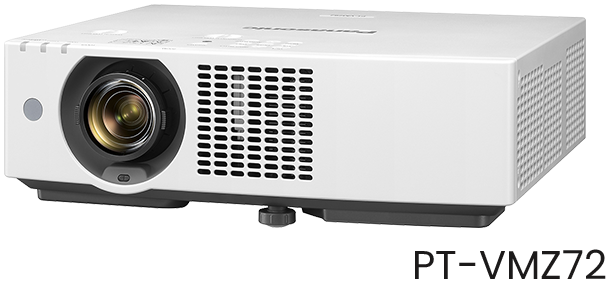

Proprietary optical engine boosts efficiency and brightness 27% more efficient more PT-VMZ72
Proprietary optical engine boosts
efficiency and brightness

Note: PT-VMZ72 (21.2 lm/W) compared to the PT-VMZ71 (16.7 lm/W) in [NORMAL] mode, according to Panasonic Projector & Display Corporation research.

Shipping cartons use recycled materials instead of polystyrene foam
Shipping cartons use recycled
materials instead of polystyrene foam

Note: Applies to PT-VMZ82 Series and PT-VMZ7ST Series.

Energy-Saving Features

(PT-VMZ82 Series, PT-VMZ7ST Series, and PT-VMZ5ES only)

Built-in Scheduling
Built-in Scheduling
Set business hours to automatically put projectors in standby when not in use.
Image Detection
Image Detection
Automatically lowers brightness when golfer is resting and the screen is idle.
Signal Detection
Signal Detection
Dims automatically when a signal is lost or playback is interrupted.

Lineup

No projector found

Use Cases

  • Use Cases 001
    Golf Bays - The Best Projector for a Golf Simulator? Panasonic PT-VMZ6ST
    Is this the best Projector for the ultimate Golf Simulator setup? Let Harrison talk you through the Panasonic PT-VMZ6ST.
    Watch Video
