PortableLCD Projectors
PT-VMQ85 SeriesPT-VMQ85 / PT-VMQ75 / PT-VMQ65
 PT-VMQ85 |
 PT-VMQ75 |
|
|---|---|---|
| Projector type | LCD projectors | |
| LCD panel | ||
| Panel size | 0.64 inch (16:10 aspect ratio) | |
| Pixels | 2,304,000 (1920 x 1200) pixels | |
| Light source | Laser diodes | |
| Light output1
?
ISO/IEC 21118: Brightness measured complied with ISO/IEC 21118: 2020 international standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m2). Value is the average of all products when shipped. ANSI lm: Brightness measured complied with American National Standards Institute standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m2). Value is the average of all products when shipped. Result of Brightness measured complied with ISO/IEC 21118 and ANSI will be same. Center lm: Measured Illumination level at the center of screen (lux) multiplied by projected area (m2). Value is the average of all products when shipped. When comparing projectors, it's essential to ensure that the brightness ratings are measured using the same standard to get an accurate comparison. |
8,000 lm2 / 8,000 lm (ANSI)3 / 8,400 lm (Center)4 | 7,300 lm2 / 7,300 lm (ANSI)3 / 7,600 lm (Center)4 |
| Time until light output declines to 50 %5 |
20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) | |
| Resolution | 4K (3840 x 2400 pixels)6 | |
| Contrast ratio2 | 5,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
|
| Screen size (diagonal) |
0.76–7.62 m (30–300 in), 16:10 aspect ratio | |
| Center-to-corner zone ratio2 |
85 % | |
| Lens | 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F=1.58–1.91, f=15.30–24.60 mm | |
| Digital Zoom Extender7 |
Throw ratio 1.09–2.21:18 (Corresponding value. When used together with optical zoom.) | |
| Lens shift (From the origin point of the lens mounter) |
||
| Vertical | +44 % | |
| Horizontal | ±20 % | |
| Keystone correction range |
Vertical ±25°, Horizontal ±35° | |
| Terminals | ||
| HDMI™ 1/2 IN | HDMI™ x 2 (Compatible with HDCP, Deep Color, 4K/60p signal input), CEC supported9 | |
| HDMI™ OUT | HDMI™ x 1, CEC not supported | |
| AUDIO IN | M3 stereo mini-jack x 1 | |
| AUDIO OUT | M3 stereo mini-jack x 1 | |
| SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) | |
| DIGITAL LINK/LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], HDCP, Deep Color, 4K/60p10 signal input) |
|
| LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2] | |
| USB (VIEWER/ WIRELESS/DC OUT) |
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A11) |
|
| Protocol versions | IPv4, IPv612 | |
| Power supply | Single-phase AC 100–240 V, 50/60 Hz | |
| Maximum power consumption13 | 405 W (4.2–1.7 A) (410 VA) (Power consumption is 390 W at 200–240 V) |
350 W (3.6–1.5 A) (355 VA) (Power consumption is 335 W at 200–240 V) |
| On-mode power consumption (Operating mode)13, 14 |
|
|
| Filter15 | Included (Estimated maintenance time: approx. 20,000 hours) | |
| Operation noise2 | 39 dB (NORMAL/ECO), 34 dB (QUIET 1), 29 dB (QUIET 2) |
37 dB (NORMAL/ECO), 32 dB (QUIET 1), 27 dB (QUIET 2) |
| Dimensions (W x H x D) |
399 x 115 x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝) (Excluding protruding parts) 399 x 133 x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝) (With legs at shortest position) |
|
| Weight16 | Approx. 7.4 kg (16.3 lbs) | Approx. 7.0 kg (15.4 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)17, 18, Operating humidity: 20–80 % (No condensation) | |
| Applicable software | Multi Monitoring & Control Software, Projector Network Setup Software, Wireless Projector App for iOS/Android™19 | |

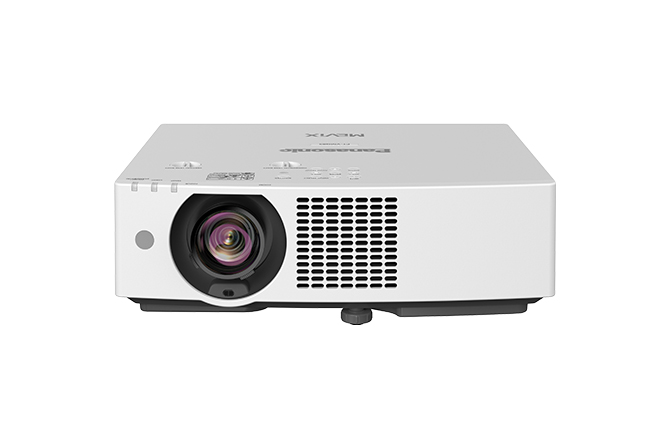

 PT-VMQ65 |
|
|---|---|
| Projector type | LCD projector |
| LCD panel | |
| Panel size | 0.64 inch (16:10 aspect ratio) |
| Pixels | 2,304,000 (1920 x 1200) pixels |
| Light source | Laser diodes |
| Light output1
?
ISO/IEC 21118: Brightness measured complied with ISO/IEC 21118: 2020 international standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m2). Value is the average of all products when shipped. ANSI lm: Brightness measured complied with American National Standards Institute standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m2). Value is the average of all products when shipped. Result of Brightness measured complied with ISO/IEC 21118 and ANSI will be same. Center lm: Measured Illumination level at the center of screen (lux) multiplied by projected area (m2). Value is the average of all products when shipped. When comparing projectors, it's essential to ensure that the brightness ratings are measured using the same standard to get an accurate comparison. |
6,500 lm2 / 6,500 lm (ANSI)3 / 6,800 lm (Center)4 |
| Time until light output declines to 50 %5 |
20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) |
| Resolution | 4K (3840 x 2400 pixels)6 |
| Contrast ratio2 | 5,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) |
0.76–7.62 m (30–300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio2 |
85 % |
| Lens | 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F=1.58–1.91, f=15.30–24.60 mm |
| Digital Zoom Extender7 |
Throw ratio 1.09–2.21:18 (Corresponding value. When used together with optical zoom.) |
| Lens shift (From the origin point of the lens mounter) |
|
| Vertical | +44 % |
| Horizontal | ±20 % |
| Keystone correction range |
Vertical ±25°, Horizontal ±35° |
| Terminals | |
| HDMI™ 1/2 IN | HDMI™ x 2 (Compatible with HDCP, Deep Color, 4K/60p signal input), CEC supported9 |
| HDMI™ OUT | HDMI™ x 1, CEC not supported |
| AUDIO IN | M3 stereo mini-jack x 1 |
| AUDIO OUT | M3 stereo mini-jack x 1 |
| SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| DIGITAL LINK/LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], HDCP, Deep Color, 4K/60p10 signal input) |
| LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2] |
| USB (VIEWER/ WIRELESS/DC OUT) |
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A11) |
| Protocol versions | IPv4, IPv612 |
| Power supply | Single-phase AC 100–240 V, 50/60 Hz |
| Maximum power consumption13 | 325 W (3.4–1.4 A) (330 VA) (Power consumption is 310 W at 200–240 V) |
| On-mode power consumption (Operating mode)13, 14 |
|
| Filter15 | Included (Estimated maintenance time: approx. 20,000 hours) |
| Operation noise2 | 35 dB (NORMAL/ECO), 30 dB (QUIET 1), 25 dB (QUIET 2) |
| Dimensions (W x H x D) |
399 x 115 x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝) (Excluding protruding parts) 399 x 133 x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝) (With legs at shortest position) |
| Weight16 | Approx. 6.9 kg (15.2 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)17, 18, Operating humidity: 20–80 % (No condensation) |
| Applicable software | Multi Monitoring & Control Software, Projector Network Setup Software, Wireless Projector App for iOS/Android™19 |
1 When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF].
2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
3 Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.
4 Average light-output value of all shipped products measured at the center of screen in NORMAL Mode.
5 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2]). Estimated time until light output declines to 50 % varies depending on environment.
6 Displayed resolution 4K (3840 x 2400 pixels) with Quad Pixel Drive [ON].
7 Resolution decreases when using Digital Zoom Extender. Grid Adjustment, 6-Point Screen Correction, V/H Keystone Correction, and curved-screen correction are not available when using this function. The range of corner adjustment is limited.
8 When Digital Zoom Extender is set to 80 %.
9 Depending on the connected CEC command compatible device, the link control may not operate normally.
10 YPBPR 4:2:0 format only for 4K/60p signals input via DIGITAL LINK.
11 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready.
12 The optional AJ-WM50 Series Wireless Module does not support IPv6.
13 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards.
14 On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft).
15 Filter cleaning cycle varies depending on the environment. The filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3),
10,000 hours (under dust conditions of 0.15 mg/m3).
16 Average value. May differ depending on the actual unit.
17 Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level.
18 When the optional AJ-WM50 Series Wireless Module is attached, the operating temperature range becomes 0–40 °C (32–104 °F).
19 When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).
