PT-VMZ71 SeriesPT-VMZ71 / PT-VMZ61 / PT-VMZ51 / PT-VMZ51S / PT-VMZ41 /
PT-VMW61 / PT-VMW51

Weighing just 7.0 kg² (15.43 lbs), PT-VMZ71 Series is the smallest and lightest LCD laser projector in its class¹ with up to 7,000 lm³ from a compact, easy-to-manage body. Its lightweight design makes it easy to carry from room to room, and simple to install on the ceiling. The projector’s smooth styling and quiet operation harmonize with your interior space, blending in and keeping attention focused on the presentation.

1 According to Panasonic research for the PT-VMZ71 only among LCD laser projectors in the 7,000-lumens-class or higher as of January 2022.

2 For PT-VMZ71. PT-VMZ61/VMW61 weighs approx. 6.9 kg (15.21 lbs), PT-VMZ51/VMZ51S/VMW51 and PT-VMZ41 6.5 kg (14.33 lbs).

3 PT-VMZ71 only. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL].

4 With feet at shortest position.

Because office and classroom projectors are used with the room lights on and window blinds open, they need high light output to produce a bright image. Thanks to a carefully refined optical engine, PT-VMZ71 Series generates up to 7,000 lm¹ of brightness, more than most professional projectors of a similar size. Dim, washed out projections are history: expect big, bright, vivid pictures in bright environments to stimulate viewer engagement with the lesson or meeting content.

1 PT-VMZ71 only. PT-VMZ61/VMW61 has 6,200 lm, PT-VMZ51/VMZ51S/VMW51 5,200 lm, and PT-VMZ41 4,500 lm of brightness. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL].

Input signals are analyzed frame by frame to regulate light output for best contrast performance in every scene. As well as accurately reproducing pictures that contain a mix of dark and bright hues, Dynamic Contrast is more energy efficient than other technologies and can be optimized to suit the content or the room’s lighting. The projector’s high 3,000,000:1¹ contrast ratio provides better detail definition in shadows with deeper blacks, brighter whites, and more natural skin-tones for a better sense of depth and definition.

1 Full On/Full Off, when [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

Daylight View Basic enhances image sharpness by clarifying detail definition in dark areas of the picture, which can be difficult to see in bright light. A sensor measures the amount of ambient light in the room and optimizes halftone color and brightness for best results according to surrounding levels of illumination.

PT-VMZ71 Series uses about 20 %¹ less energy than the previous series. Efficiency is further increased, and brightness optimized to suit ambient light levels, just by pressing the ECO² button on the remote control. Adopting energy-efficient Panasonic projection in your meeting rooms or learning spaces helps you to achieve CSR environmental policy objectives while reducing waste.

1 PT-VMZ51S/VMZ41 in comparison to PT-VMZ50/VMZ40 in NORMAL Mode according to Panasonic research.

2 Brightness is reduced when operating the projector in ECO Mode.

In typical office and classroom environments, the projector’s reusable ECO Filter doesn’t need replacement until about 20,000 hours¹. That equates to about 10 years of service assuming about 40 hours of projection per working week. If it’s necessary to maintain the filter before then, it can be washed and reused up to two times, reducing waste and parts inventories and contributing to your CSR environmental policy objectives.

1 Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m³), 10,000 hours (under dust conditions of 0.15 mg/m³).

DIGITAL LINK¹ is a single-cable AV and control solution based on HDBaseT™ that supports 4K² video, audio, and control-signal transmission via a single CAT 5e STP cable (or higher) for distances of up to 50 m (164 ft) or 150 m³ (492 ft) for 1080p video, reducing cabling cost and installation complexity when projectors are at a long distance from the server room.

1 PT-VMZ51S and PT-VMZ41 excluded.

2 Supports signals up to 4K/30p. A signal with different resolution is converted to the number of display dots. PT-VMZ71/VMZ61/VMZ51/VMZ51S/VMZ41: 1920 x 1200 dots,
PT-VMW61/VMW51: 1280 x 800 dots. Applicable terminals: DIGITAL LINK terminal/HDMI terminal.

3 Transmission distances up to 150 m (492 ft) are supported with signals up to 1080/60p and the projector set to Long Reach Mode when used in conjunction with the optional ET-YFB200G DIGITAL LINK Switcher (not compatible with 4K signals).

You can control PT-VMZ71 Series via a dedicated LAN terminal or via the HDBaseT™-based DIGITAL LINK¹ connection. Both interfaces support 100Base-TX and 10Base-T compatible control signals via Panasonic, PJLink™, Crestron Connected™, AMX DD, and Extron^® device control and management applications.

1 PT-VMZ51S and PT-VMZ41 excluded.

PT-VMZ71 Series is the first Panasonic projector to feature 6-Point Screen Correction. It allows you to perform 4-Corner and Horizontal/Vertical Keystone Correction via remote control to remove trapezoidal distortion when projecting from an angle, such as a high ceiling. An extra two control points located at center top and bottom of the screen can be used to remove distortion when projecting an image into the corner of a room.

Screen Adjustment fits the image to the screen when projecting from an unusual angle. Curved Screen Correction removes barrel or pincushion distortion for projection onto curved surfaces.

Press a button on top of the unit or on the remote control to block light-output temporarily via the shutter function. This feature is useful when taking a short recess during lessons or meetings, or whenever you want to pause content without showing an image, but keep the projector on and ready to go again instantly.

You can connect your mobile devices to the projector over wireless LAN¹ just by reading a QR Code displayed in the projector’s OSD menu with your smartphone’s camera. No password or SSID entry is required. Then use our free Wireless Projector app² to beam select media stored on your device to the big screen. This feature saves time and prevents disruption to the flow of the class or meeting.

1 Optional AJ-WM50 Series Wireless Module required (sold separately). Product availability may vary by country or region.

2 Available free from the App Store or Google Play Store. When using Wireless Projector app, display resolution differs depending on your iOS or Android™ device and the display device. Maximum supported display resolution is WXGA (1280 x 800).

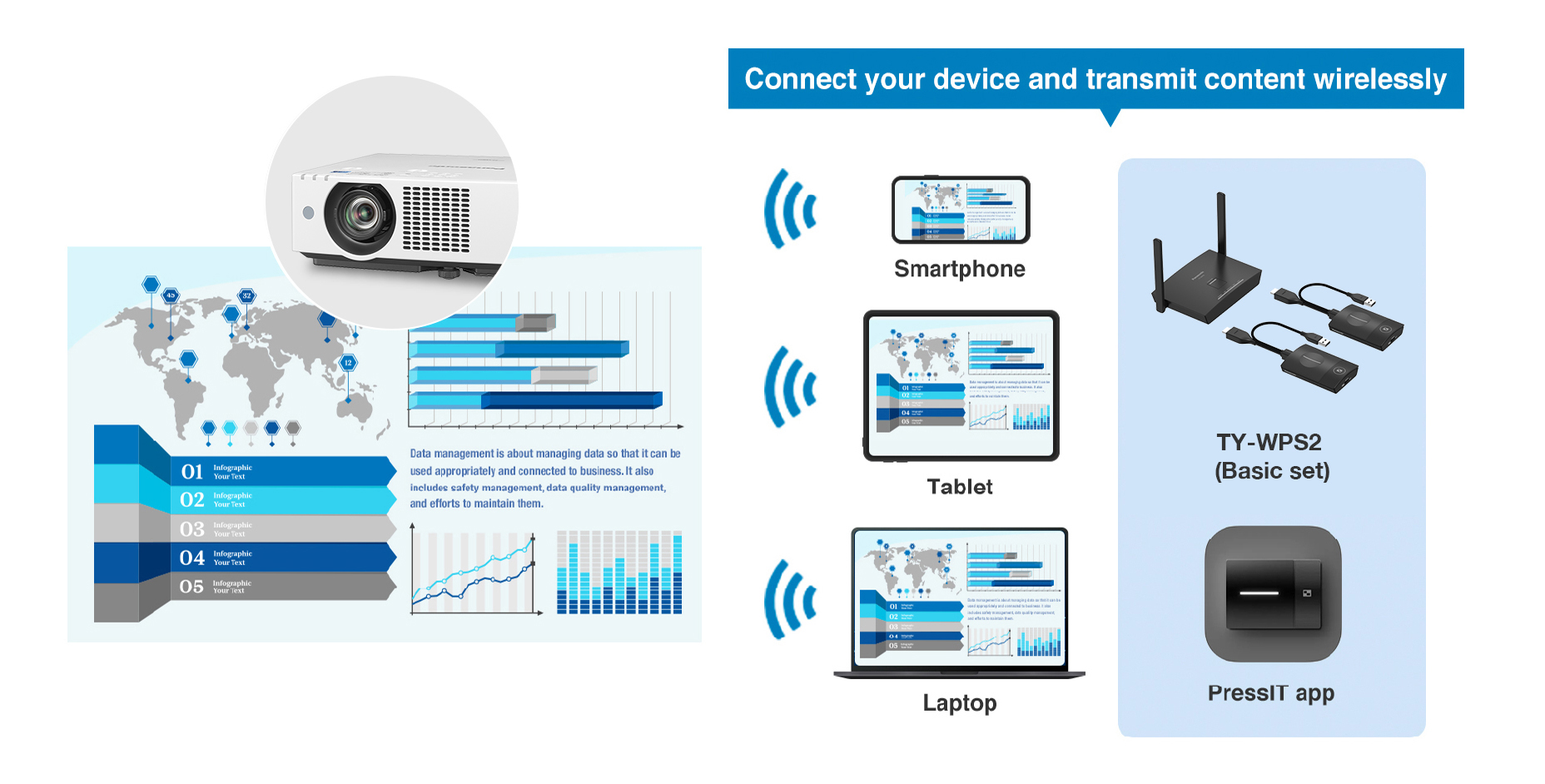

Mirror your device’s screen on the projector screen almost instantly, no software needed. Wireless Presentation System PressIT¹ can connect up to 32 devices to the projector wirelessly, and allows people to display their screens and switch presenters with a single button-press. PressIT comprises a CEC command compatible² HDMI receiver on the projector side, and transmitters that connect to PCs or mobile devices³. Just connect, press a button, and your device screen is displayed on the projector via the system’s secure 5 GHz 802.11ac compatible wireless LAN. Get more value from face-to-face interactions and streamline communication without cable hassle at a safe social distance. Learn more here or visit our Wireless Solutions webpage for more information.

1 Wireless Presentation System is sold separately. Availability may vary by country. For more information, please click here.

2 Depending on the connected CEC command compatible device, the link control may not operate normally.

3 Android™ device’s USB Type-C terminal requires support for DisplayPort™ ALT Mode (image output function) and DC power supply (5 V/0.9 A). Refer to product manual for more information. Android™ devices require a dedicated app.

The projector includes a 5 V/2 A USB-DC terminal to power optional Wireless Presentation PressIT¹ or a compatible HDMI media streaming device² for a neat installation on the ceiling without need of extra AC outlets.

1 Wireless Presentation System is sold separately. Availability may vary by country or region. For more information, please click here.

2 Compatibility with optional third-party devices (sold separately) cannot be guaranteed.

Whether your class or meeting is face-to-face, broadcast to remote participants via IP camera, or a mix of both, it’s important that noise from the projector doesn’t distract attention from the content or the discussion. PT-VMZ71 Series includes a Quiet Mode enabling operation with as little as
26 dB¹ of noise, helping the projector to fit unobtrusively into the installation environment while keeping your group’s attention focused.

1 Excluding PT-VMZ71. Operating noise for PT-VMZ71 in QUIET Mode is 28 dB.

PT-VMZ71 Series features Panasonic’s SOLID SHINE Laser technology and long-life ECO Filter, which do not require replacement for 20,000 hours¹ when used in a typical office or classroom environment. As well as reducing the cost, hassle, and callout frequency of projector maintenance, you don’t need to keep a large inventory of consumable parts on hand since ECO Filter can be washed and reused up to two times².

1 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m³ of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Filter cleaning cycle varies depending on environment.

2 Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m³), 10,000 hours (under dust conditions of 0.15 mg/m³).

Panasonic’s free AV management software for Windows^® PC lets you monitor and control up to 2,048 compatible display devices of any brand via LAN to reduce maintenance hassle within display networks of any scale. Multi Monitoring & Control Software enables status monitoring, device control, content playlist delivery, playback scheduling, and system-map visualization. A free 90-day trial of optional Early Warning software is included. It notifies the operator in the event of a playback or device error, and sends alerts when symptoms of trouble are detected. Maintenance reminders help in the management of consumable parts inventories and the scheduling of maintenance, while operational reports can be generated and exported as a text file. The software links with compatible network cameras for live screen-monitoring, and you can monitor devices remotely from a tablet via VPN. Software data may be acquired via Web API and installed onto an existing control application. For more information, visit our software information webpage.

Note: Multi Monitoring & Control Software for Windows is available free from the Panasonic projector website and includes a 90-day free trial of Early Warning software. Some functions require Version 3.2 or later. Some software functions may not be supported by this projector series. Purchase an optional license at PASS to continue using Early Warning software after the free 90-day trial period expires.

PT-VMZ71 Series makes life easy for faculty and staff, who use the projectors every day. Auto Input-Signal Search function detects the active source device, switches to the corresponding input, and allows playback to commence without the user having to manually perform these operations.

PT-VMZ71 Series also supports Quick On/Quick Off. When the projector is switched on, the startup screen is displayed almost instantly at full brightness, with no gradual fade-in you expect from a lamp projector. This helps to maintain the momentum of your lesson or meeting. And unlike lamp projectors, you can switch off the VMZ71 Series projector and unplug it without waiting for cooldown. Direct Power Off function allows the projector to be safely shut off via the room’s breaker switch.

Note: When ECO MANAGEMENT > QUICK STARTUP is set to ON. Quick Start is unavailable after the Available Period setting has expired. When QUICK STARTUP is set to ON, the projector continues to warm up, increasing power consumption.

You don't even need a computer to start presenting—just insert a USB memory device containing compatible still images to the projector’s USB port, press the NETWORK/USB button on the remote, select MEMORY VIEWER, and start presenting. Advance or go back to the previous slide using the arrow keys on the remote.
