Geometry Manager Functions
Geometry Manager Functions comprise built-in Geometric Adjustment and Visual Software Suite (VSS) for Windows® PC. Geometry Manager Functions make everything from basic image adjustment for projection onto pillars and curved walls to multi-projector mapping easier and less resource-intensive than any other solution. The suite scales effortlessly in any application with essential tools accessible via remote control or via laptop and Ethernet. Bringing unmatched precision to a human-friendly interface, Geometry Manager Functions expand the scope of your projection beyond spatial limitations.
Compatible Models
| Geometric Adjustment | Geometric Adjustment with Free Grid |
Visual Software Suite | Geometry Manager Pro | |
|---|---|---|---|---|
| PT-RQ50K | ✔ | ✔ | ✔ | ✔ |
| PT-RQ45K Series | ✔ | ✔ | ✔ | ｰ |
| PT-RQ35K2 Series | ✔ | ✔ | ✔ | ✔ |
| PT-RQ35K Series | ✔ | ✔ | ✔ | ✔ |
| PT-RQ32K | ✔ | ｰ | ✔ | ✔ |
| PT-RZ31K Series | ✔ | ｰ | ✔ | ✔ |
| PT-RQ25K Series | ✔ | ✔ | ✔ | ✔ |
| PT-RZ14K | ✔ | ✔ | ✔ | ✔ |
| PT-RQ22K | ✔ | ✔ | ✔ | ✔ |
| PT-RZ21K Series | ✔ | ✔ | ✔ | ✔ |
| PT-RZ16K | ✔ | ✔ | ✔ | ✔ |
| PT-RQ13K | ✔ | ｰ | ✔ | ✔ |
| PT-RZ12K Series | ✔ | ｰ | ✔ | ✔ |
| PT-DZ21K2/ DS20K2 |
✔ | ｰ | ｰ | ✔ |
| PT-DW17K2/ DZ16K2 |
✔ | ｰ | ｰ | ｰ |
| PT-DZ16K | ✔ | ｰ | ｰ | ｰ |
| PT-REQ15 Series | ✔ | ✔ | ✔ | ✔ |
| PT-REZ15 Series | ✔ | ✔ | ✔ | ✔ |
| PT-RQ7 Series | ✔ | ✔ | ✔ | ✔ |
| PT-RCQ10 Series | ✔ | ✔ | ✔ | ✔ |
| PT-RZ120 | ✔ | ✔ | ✔ | ✔ |
| PT-RZ990 Series | ✔ | ✔ | ✔ | ✔ |
| PT-RZ970/ RZ870 |
✔ | ｰ | ✔ | ✔ |
| PT-RW930/ RX110 |
✔ | ｰ | ｰ | ｰ |
| PT-RZ770/ RZ660 |
✔ | ｰ | ✔ | ✔ |
| PT-RW730/ RW620 |
✔ | ｰ | ｰ | ｰ |
| PT-FRQ60 Series | ✔ | ✔ | ｰ | ｰ |
| PT-DZ780 | ✔ | ｰ | ｰ | ✔ |
| PT-DW750/ DX820 |
✔ | ｰ | ｰ | ｰ |
| PT-MZ20K Series | ✔ | ✔ | ✔ | ✔ |
| PT-MZ16K Series | ✔ | ✔ | ✔ | ✔ |
| PT-MZ882 Series | ✔ | ｰ | ｰ | ✔ |
| PT-MZ880 Series | ✔ | ｰ | ｰ | ✔ |
Notification: Geometry Manager Pro has now been integrated into the Visual Software Suite.We recommend using the suite instead.
- Built-in functions
-
Geometric Adjustment
Built-in Geometric Adjustment covers essentials such as independent Corner Adjustment and correction for special screens via remote control. Select models include Free Grid function.
- Free software
-
Visual Software Suite
Visual Software Suite is a free, Windows®-based platform that combines multiple functions into one intuitive graphical interface, enabling swift and efficient setup and onsite adjustments.
Built-in functions
Geometric Adjustment
Geometric Adjustment is a suite of built-in functions operated via the projector remote control that correct distortion when images are projected at an angle, onto curved screens, uneven surfaces, or over wall obstructions. Correction extends to spherical, cylindrical, and other complex screen shapes without need of a connected PC. Maintain Aspect Ratio and independent Corner Adjustment functions simplify correction while the ability to save image-adjustment data is invaluable whenever correction settings needs to be disabled and reapplied, and for saving work progress.
Curved Correction
Curved Correction allows you to project a natural distortion-free image onto curved or cylindrical screen surfaces such as pillars, stairwells, or curved walls.
Corner Adjustment
Image corners can be independently adjusted and a data profile stored, saving projectionists the hassle of recalibration. This function increases keystone correction flexibility when projecting at non-perpendicular angles.
Maintain Aspect Ratio
Aspect can be locked and geometry adjusted so the image fits without distortion. Maintain Aspect Ratio can be disabled to prioritize coverage over the display area, eliminating gaps between image and screen edges for maximum visual impact.
Built-in functions
Free Grid
Free Grid is built into selected projectors and simplifies operation of Geometric Adjustment. Using only the projector remote control, installers can correct image distortion caused by uneven surfaces or irregular objects on flat or curved screens. A grid is overlaid on the projected image, allowing users to reshape distorted areas by adjusting the position of node or V/H line control-points. Grids of between 2 x 2 and 17 x 17 lines are selectable according to required granularity, and work progress is saved automatically so you can move freely between grid resolutions. Adjustment speed can be altered by tapping or holding the remote keys. Grid and control-point colors are selectable to ensure clear visibility over the projected image. Free Grid approaches the precision and convenience of software-based solutions in situations where PC connection isn’t practical.
A firmware update may be required before using Free Grid.
Visit PASS for more information.
Free software
Visual Software Suite
A Free, Integrated Platform to Transform Your Workflow

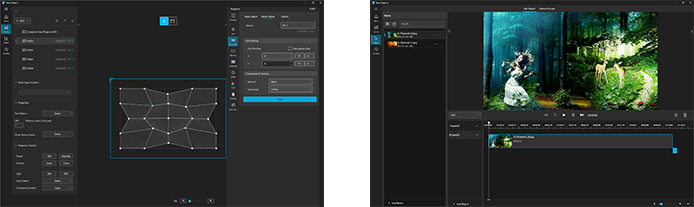

Visual Software Suite is a free, Windows®-based platform that combines multiple functions into one intuitive graphical interface, enabling swift and efficient setup and onsite adjustments. Integrating and enhancing the capabilities of previously separate Panasonic software, it transforms your workflow into streamlined and cost-effective processes. For detailed information, please visit the Visual Software Suite webpage.
Free software
Geometry Manager Pro (Deprecated)
This application is now integrated into the Visual Software Suite, and we recommend using this suite with compatible projectors going forward. However, Geometry Manager Pro will remain available as standalone software for projectors that are not compatible with VSS. Please note that the ET-UK20 and
ET-CUK10 upgrade kits for Geometry Manager Pro will be discontinued in the second quarter of CY2026.
