Large-Venue3-Chip DLP™ Projectors

PT-RQ25K SeriesPT-RQ25K / PT-RZ24K / PT-RQ18K / PT-RZ17K

Deliver More for Less with the World’s Smallest and Lightest 20,000 lm 3-Chip DLP™ 4K Laser Projector

PT-RQ25K Series

Note: Based on publicly available dimensions and weight for DLP™ laser projectors with 16,000 lm brightness and above as of October 2022. Optional 3-Chip DLP™ lenses3 sold separately.

PT-RQ25K PT-RZ24K PT-RQ18K PT-RZ17K
20,000 lm4 / 21,000 lm5 16,000 lm4 / 16,800 lm5
4K
(3840 x 24006 pixels)
WUXGA
(1920 x 1200 pixels)
4K
(3840 x 24006 pixels)
WUXGA
(1920 x 1200 pixels)
DLPSOLID SHINE LASER4K2QUAD PIXEL DRIVE7
4K DIGITAL LINK8ACCEPT 4K SIGNAL
INTEL®360°
GeoPro24/7 Oparation3D9
PT-RQ25K Series wins Projector Central’s InfoComm 2022 Best of Show Award
01 Key Feature

Compact Form-Factor
Streamlines Workflow

PT-RQ25K Series is 40 % smaller and 35 % lighter10 than PT-RQ22K for easy handling and workflow. Intel® SDM-ready slot expands connectivity with proprietary or third-party11 function boards. Smart Projector Control12 app, NFC function13, Remote Preview LITE, and preactivated upgrade kits for Geo Pro14 streamline installation.

More Information

02 Key Feature

Create an Engaging
Visual Experience

Quad Pixel Drive creates smooth 4K2 images while newly improved Dynamic Contrast delivers higher white brightness and deep blacks during high-contrast scenes. Gradation Smoother reduces color banding, while Panasonic’s exclusive black-level adjustment evolves again to support seamless
multi-screen projection.

More Information

03 Key Feature

Maintenance-free
for Peace of Mind

Hermetically sealed optical block and
high-efficiency liquid-cooling system enable maintenance-free projection for 20,000 hours15. Multi-Laser Drive Engine and Backup Input16 enhance reliability for failure-proof projection. Refined power supply supports projection at up to 15,000 lm17 on
AC 100–120 V power.

More Information

1 Please refer to specifications table for brightness value of individual models. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

2 PT-RQ25K/RQ18K only with Quad Pixel Drive [ON].

3 Excluding lenses for the PT-RQ50K projector.

4 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

5 Average light-output value of all shipped products measured at center of screen in NORMAL Mode.

6 Maximum physical resolution with Quad Pixel Drive [ON].

7 PT-RQ25K/RQ18K only.

8 Only when optional TY-SB01DL DIGITAL LINK Terminal Board is loaded.

9 PT-RZ24K/RZ17K only.

10 Estimated values by cabinet volume and weight (excluding lens) according to Panasonic research.

11 Intel® SDM-specified third-party function boards sold separately. Panasonic cannot guarantee operation of third-party devices.

12 Check device compatibility at the App Store or the Google Play store.

13 Projectors sold in some countries or regions require an ET-NUK10 Upgrade Kit available from PASS to activate NFC function. See NFC Regional Compatibility List for details.

14 Geometry Manager Pro software for Windows® and preactivated upgrade kits require projector registration. Visit PASS to register your projector and download free software.

15 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Panasonic recommends checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on environment.

16 Primary and backup terminal assignment is fixed. Input signals to primary and backup inputs must be identical.

17 Maximum light output is limited to approximately 15,000 lm. Maximum value of light output is further decreased in the following cases: when a function board is installed in the slot, when the light source is deteriorating from use, or when there is dust on the optical parts.

Compact Form-Factor Streamlines Your Workflow

Flexible Features Streamline On-site WorkflowFlexible Features Streamline On-site Workflow

The World’s Smallest and Lightest 20,000 lm1 3-Chip DLP 4K2 Projector

The World’s Smallest and Lightest 20,000 lm 3-Chip DLP™ 4K Projector

PT-RQ25K Series is 40 % smaller and 35 % lighter3 than PT-RQ22K and only a little larger than our 10,000-lm-class 1-Chip DLP™ models. Unlock time-saving workflow efficiencies that save resources with transport, handling, and installation easily managed with a team of two. Explore exciting spatial design possibilities in locations previously too small to fit a 3-Chip DLP™ projector. Innovations such as miniaturized optical engine and power supply, high-efficiency cooling system, and revised optical unit materials have resulted in a game-changing design that brings elite
3-Chip DLP™ performance to events of any scale.

Note: Based on publicly available dimensions and weight for DLP™ laser projectors with 16,000 lm brightness and above as of October 2022.

Scene Image

1 Please refer to specifications table for brightness value of individual models. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

2 PT-RQ25K/RQ18K only with Quad Pixel Drive [ON].

3 Estimated values by cabinet volume and weight (excluding lens) according to Panasonic research.

Smart Projector Control1 App Smooths Your Workflow

Smart Projector Control app simplifies projector setup and operation. Connection is easy: just scan the QR Code2 displayed in the projector’s OSD menu with your smartphone camera. You can control up to 64 projectors simultaneously with operations such as on/off, input selection, and setting adjustment easily performed even with the projector in standby. You can select test patterns, adjust lens settings via new lens-control UI, and focus the projection with your smartphone camera3 from distances of up to 30 m (98 ft)4. For more information, visit the Smart Projector Control webpage.

Automatic Focus Adjustment with Auto Focus Function

1 Check device compatibility at the App Store or the Google Play store.

2 Requires optional AJ-WM50 Series Wireless Module (sold separately). Product availability may vary by country or region.

3 Some devices do not support projector autofocus function.

4 When projecting a 300-inch image. Maximum distance is 3 m (10 ft) for a 100-inch image.

Save Prepping Time with NFC Function1

NFC function1 allows you to prepare your projector for setup and installation, and initialize it to factory defaults after the event, when AC power is unavailable on site or when OSD projection isn’t possible. Just place your phone on the projector’s NFC touchpoint to connect and use Smart Projector Control2 app to read and write settings such as Projector ID and IP address. Fleets of projectors can be prepped for immediate network connection and setup the moment power rolls out on the installation site, saving time and resources. After the event, projectors can be reset to defaults while unplugged, an action that used to require OSD menu projection.

Read and Write settings Data via Smartphone with New NFC Function

1 Projectors sold in some countries or regions require an ET-NUK10 Upgrade Kit available from PASS to activate NFC function. See NFC Regional Compatibility List for details.

2 Check device compatibility at the App Store or the Google Play store.

Import and Save Your Own Test Patterns

In addition to 10 built-in test patterns, you can now import and save up to three of your own custom test-patterns to the projector. You can save your go-to test patterns or use a client’s content to calibrate the projector before the video source is connected. Access compatible BMP or PNG image files saved to USB memory via the Test Pattern menu, where they can be saved, renamed, or deleted using the projector remote control.

10 Built-in Test Patterns

Note: Supports PNG (1/8/16/24/32/48/64-bit, non-transparent, alpha blending disabled) and BMP (1/8/24-bit) formats with maximum resolution of 3840 x 2400 dots (PT-RQ25K/RQ18K) or 1920 x 1200 dots (PT-RZ24K/RZ17K). For more information, please check the Operating Manual.

Flexible Screen Adjustment via Remote Control

Free Grid lets you easily fix image distortion caused by uneven projection surfaces or objects on flat or curved screens using the projector remote control. Reshape the image by adjusting control points or V/H lines on an overlaid grid. Select from various grid resolutions between 2 x 2 and 17 x 17 lines depending on the precision you require. Work progress is saved automatically, and grid and control-point colors can be changed for best visibility over the background image.

Flexible Screen Adjustment via Remote Control

Preactivated Upgrade Kits for Geo Pro1 Software

PT-RQ25K Series ships with preactivated licenses for upgrade kits bundled with free Geometry Manager Pro1 software. ET-UK20 Geometry Manager Pro Software Upgrade Kit adds sophisticated edge-blending, color uniformity, and masking tools to an expanded set of software functions. ET-CUK10 Auto Screen Adjustment Upgrade Kit gathers data from a compatible camera2 to automatically calibrate edge-blended areas by adjusting their brightness, color, and black level, saving you the time and hassle of manual calibration.

1 Visit PASS to register your projector and download free Geometry Manager Pro software for Windows® (upgrade kits included). Visit the Panasonic Geometry Manager Functions webpage for more information.

2 Compatible cameras comprise Nikon D5200/D5300/D5500/D5600/D7500. Use of Auto Screen Adjustment function with these cameras requires installation of Auto Screen Adjustment
Plug-in (a free camera driver available from PASS). Use of Auto Screen Adjustment function with D7500 requires Geometry Manager Pro Ver. 6.1.10 or later and Auto Screen Adjustment Plug-in Ver. 5.1.10 or later.

Remote Preview LITE for Monitoring During Events

Remote Preview LITE lets the projectionist confirm video-signal integrity by viewing thumbnails of the input signal on a laptop prior to projection. Accessed via software or web browser, Remote Preview LITE works with the projector in Standby1 or with the shutter on. It’s useful at events such as concerts where opportunities to check content on screen are limited due to stage traffic, soundchecks, sunlight on the screen, and other logistical factors. Remote Preview LITE reduces chance of errors before the performance, and if an error is detected, helps narrow down the possible cause to the signal.

Remote Preview Lite for Monitoring During Events

1 Projector must be set to Pre-Show Mode.

Note: Requires Multi-Monitoring & Control Software Version 3.2 or later available free here. For more information, click here.

Information Monitor for Easy Setup and Monitoring

A screen on the terminal side of the projector shows operating status information such as temperature, input voltage, runtime, input signal data, and error codes. Use the keypad to navigate simple UI menus where you can configure network settings or update firmware while the projector is in standby, saving time when it’s not possible to project the OSD.

Information Monitor

Wide Scalability with Intel® SDM-ready Slot

Intel® SDM-ready slot integrates optional proprietary or third-party1 function boards. These function boards reduce installation complexity and make it easier to adapt, scale, and expand your projector’s connectivity to suit different applications now and in the future. The projector works with Panasonic’s DIGITAL LINK Terminal Board (TY-SB01DL), 12G-SDI Terminal Board (TY-SB01QS), and Wireless Presentation System PressIT Receiver Board (TY-SB01WP), as well as selected third-party1 PC boards, terminal boards, and AVoIP boards.

Interface Expandability with SLOT

Expand, adapt, and scale your connectivity

1 Third-party Intel® SDM-specified function boards sold separately. A list of third-party function boards tested for compatibility with PT-RQ25K Series is to be announced. Panasonic cannot guarantee operation of third-party devices. The transmission method to the slot must be by HDMI™ signal.

Create an Engaging Visual Experience

Smooth 4K1 Images with Quad Pixel Drive

Scene Image

Quad Pixel Drive, Panasonic’s original 2-axis pixel-quadrupling technology, shifts each pixel vertically and horizontally at high speed to produce sharp, clear, detail-rich images at a maximum resolution of 3840 x 2400 pixels (16:10)1. Combined with high DMD pixel density and narrow aperture ratio, Quad Pixel Drive creates smooth 4K1 images with immersive depth and definition.

1 PT-RQ25K/RQ18K only with Quad Pixel Drive [ON].

Newly Improved Dynamic Contrast

Panasonic’s Dynamic Contrast technology has evolved to 25,000:11. In addition to the high contrast ratio, Dynamic Contrast gains new image-scene analysis that enables more detailed recognition of light and dark areas and better contrast expression. The technology analyzes content frame-by-frame and digitally adjusts light output according to the contrast requirements of each scene.

New Dynamic Contract Setting

1 Full On/Full Off with Dynamic Contrast set to [3]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards.

Gradation Smoother to Reduce Color Banding

Gradation Smoother technology reduces banding in gradients of shaded color that can become evident in content that lacks adequate color bit-depth. Use the projector remote to select from three levels of image correction depending on how much banding is present, or disable the function when it’s not needed. Gradation Smoother is a lifesaver when banding is apparent in the projection and there’s no time to re-edit the content.

Gradation Smoother Reduces Video Banding

Note: Projectors ship with Gradation Smoother set at a factory default of [2].

Adjust Black Levels on Curved Screens

With conventional black-level adjustment, achieving uniform black levels inside blended areas on curved screens has always been tricky. This is because the curvature of the screen distorts the width of black borders used to set black levels. Panasonic answers the problem with advanced black-level adjustment to suit arbitrary screen shapes. You can use up to 17 control points to reshape black borders so they fit the screen without distortion, allowing you to set black levels uniformly with 0.5-pixel precision that’s ideal for 4K content.

Flexible and Precise Black-Level Adjustment

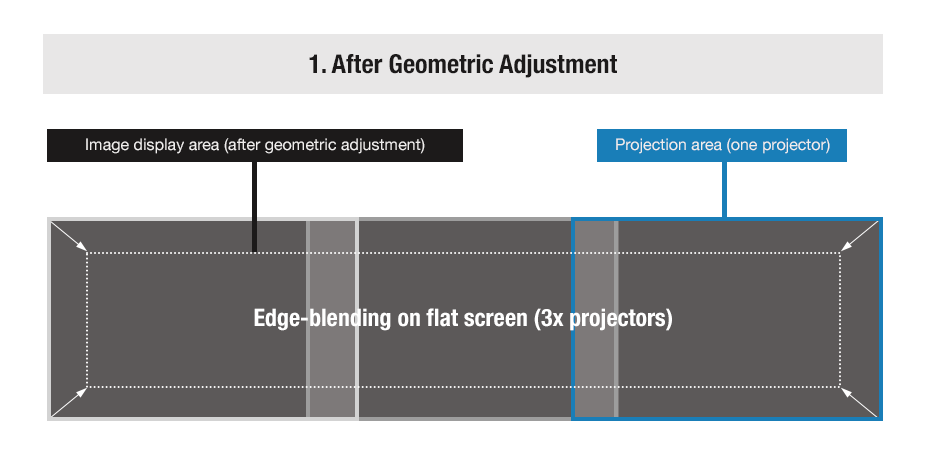

Adjust Black Levels Inside and Outside the Image Display Area

Panasonic’s unique black-level adjustment has further evolved to eliminate distracting black-level bumps that can appear in blends outside of the image display area after geometric adjustment is applied. By unlinking black-level adjustment from geometric adjustment, black-level settings can be applied to the entire blend, including the image overlaps outside the image display area, for a completely seamless multi-screen image.

Apply Black-Level Adjustments Inside and Outside the Image Display Area

Note: Black-level area setting must be performed before black-level adjustment. The ability to unlink black-level adjustment from geometric adjustment is supported only on flat screens when adjacent images are aligned vertically or horizontally.

Reliable and Maintenance-free for Peace of Mind

Supports AC 100–120 V and AC 200–240 V Power [Japan/U.S. Only]

While PT-RQ25K Series delivers full brightness on AC 200–240 V power, if voltage is lost during an event, or not ready prior to installation, the projector can still deliver up to 15,000 lm1 brightness on AC 100–120 V. Users in regions with AC 100–120 V power can set up and calibrate the projector using a standard AC mains outlet while waiting for high-voltage power to be rolled out at the event site. No more wasted time on unforeseen holdups—this feature keeps your team on schedule as event infrastructure comes together around you.

1 Maximum light output is limited to approximately 15,000 lm. Maximum value of light output is further decreased in the following cases: when a function board is installed in the slot, when the light source is deteriorating from use, or when there is dust on the optical parts.

Compatible with Our 3-Chip DLP Lens Lineup

PT-RQ25K Series is compatible with Panasonic’s fixed and zoom lenses for 3-Chip DLP™ projectors1. Lens-shift range is now significantly wider with up to ±66 % (V) and ±24 % (H) of powered adjustment available with supported lenses. ET-D3LEU100/D3LEU101 Ultra-Short-Throw Lens and ET-D3LEW200/D3LEW2012 Short-Throw Zoom Lens produce jaw-dropping images from short throw-distances with zero offset at the top and bottom of the image. The projector also suits ET-D3LEF70 Fisheye Lens for full-dome 4K projection, and the new ET-D3LEW300 Zoom Lens.

Compatible with Our 3-Chip DLP™ Projector Lens Lineup

Note: PT-RQ25K Series projectors ship without a lens. Optional 3-Chip DLP™ projection lenses sold separately.

1 Excluding dedicated lenses for PT-RQ50K.

Backup Input Reduces Chance of Interruption

Backup Input function provides a layer of insurance against display interruption during mission-critical events. Two identical signals can be transmitted to HDMI 1 (Primary) and HDMI 2 (Backup). If transmission to the primary input is interrupted, the projector switches to the backup signal automatically in a minimum of 0.3 seconds1 without screen-blanking. When communication is restored, the projector can be switched back to the primary input.

Backup Input Reduces Chance of Interruption

1 Varies depending on the Backup Input mode and the connected external device.

Note: Primary Input (HDMI 1) and Backup Input (HDMI 2) terminal assignment is fixed. Input signals to primary and backup inputs must be identical.

Includes Built-in Mechanical Shutter Function

PT-RQ25K Series has a built-in mechanical shutter. It’s useful at events where laser lighting is used. The shutter protects the DMD imaging elements from direct exposure to laser light that can enter the optical block via the lens. You can keep the projector powered on with the shutter closed, ready to resume playback at the touch of a button.

Multi Laser Drive Engine with Failover Circuitry

Multiple laser modules are equipped with Panasonic’s unique Failover Circuitry. In the unlikely event a single diode fails, Failover Circuitry continues to supply electricity to the functional diodes in the series, minimizing brightness loss. If the same issue were to occur in projectors without Failover Circuitry, all diodes in the module may shut down, resulting in significant loss of brightness. Multi Laser Drive Engine gives peace of mind in mission-critical situations when image display cannot be interrupted.

Multi Laser Drive Engine with Failover Circuitry

Supports 20,000 Hours1 of Maintenance-free Projection

PT-RQ25K Series features a hermetically sealed optical engine that prevents ingress of fine dust particles, eliminating need for an air filter and enabling 20,000 hours1 of maintenance-free projection. Newly refined liquid-cooling system and optimized one-way airflow path enable continuous operation in dusty environments.

1 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Panasonic recommends checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on environment.

Additional Features

  • ・ Supports Art-Net DMX, PJLink™, Crestron Connected® V2,
    Crestron® XiO Cloud, Extron XTP®, and IPv61
  • ・ Compatible with new Multiple PJ Firmware Batch Update Tool
  • ・ Contrast Sync and Shutter Sync Functions
  • ・ 90 % Brightness Uniformity
  • ・ Data-Cloning Function2
  • ・ Free 360° Installation
  • ・ Quick Start and Quick Off
  • ・ Multi-screen Support System
  • ・ Multi-Unit Brightness and Color Control
  • ・ DICOM Simulation Mode
  • ・ Waveform Monitor Function

1 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6.

2 Data-cloning function supported on identical projectors only. Excludes passwords, projector name/ID, and network settings.
